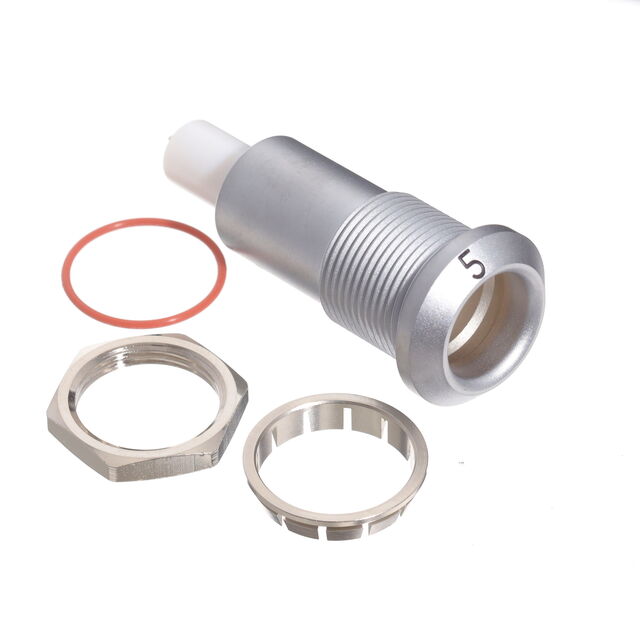

ERA.1Y.405.CTL

Active

LEMO

CONN RCPT FMALE 1P GOLD SLDR CUP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 1P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	ERA.1Y.405.CTL

Backshell Material, Plating	Brass, Chrome
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Material	Beryllium Copper
Current Rating (Amps)	8 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polytetrafluoroethylene (PTFE)
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	1
Operating Temperature [Max]	230 °C
Operating Temperature [Min]	-55 °C
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	405

Part	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Contact Material	Backshell Material, Plating	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Ingress Protection	Shell Finish	Contact Finish - Mating	Fastening Type	Mounting Feature	Connector Type	Insert Material	Number of Positions	Color	Current Rating (Amps)	Shell Material	Primary Material
LEMO ERA.1Y.410.CTA	230 °C	-55 °C	410	Brass	Brass Chrome	Backshell	59 Áin	1.5 Ám	IP50	Chrome	Gold	Push-Pull	Bulkhead - Rear Side Nut	Male Pins Receptacle	Polytetrafluoroethylene (PTFE)	1	Silver	8 A	Brass	Metal
LEMO ERA.1Y.410.CTL	230 °C	-55 °C	410	Beryllium Copper	Brass Chrome	Backshell	78.7 µin	2 µm	IP50	Chrome	Gold	Push-Pull	Bulkhead - Rear Side Nut	Receptacle Female Sockets	Polytetrafluoroethylene (PTFE)	1	Silver	8 A	Brass	Metal
LEMO ERA.1Y.405.CTL	230 °C	-55 °C	405	Beryllium Copper	Brass Chrome	Backshell	78.7 µin	2 µm	IP50	Chrome	Gold	Push-Pull	Bulkhead - Rear Side Nut	Receptacle Female Sockets	Polytetrafluoroethylene (PTFE)	1	Silver	8 A	Brass	Metal
LEMO ERA.1Y.416.CLL	230 °C	-55 °C	416	Beryllium Copper			78.7 µin	2 µm	IP50	Chrome	Gold	Push-Pull	Bulkhead - Rear Side Nut	Receptacle Female Sockets	Polyetheretherketone (PEEK)	1	Silver	6 A	Brass	Metal
LEMO ERA.1Y.416.CLL37	230 °C	-55 °C	416	Beryllium Copper			78.7 µin	2 µm	IP50	Chrome	Gold	Push-Pull	Bulkhead - Rear Side Nut	Receptacle Female Sockets	Polyetheretherketone (PEEK)	1	Silver	6 A	Brass	Metal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Position Circular Connector Receptacle, Female Sockets Solder Cup
