19300060446

Active

HARTING Technology Group

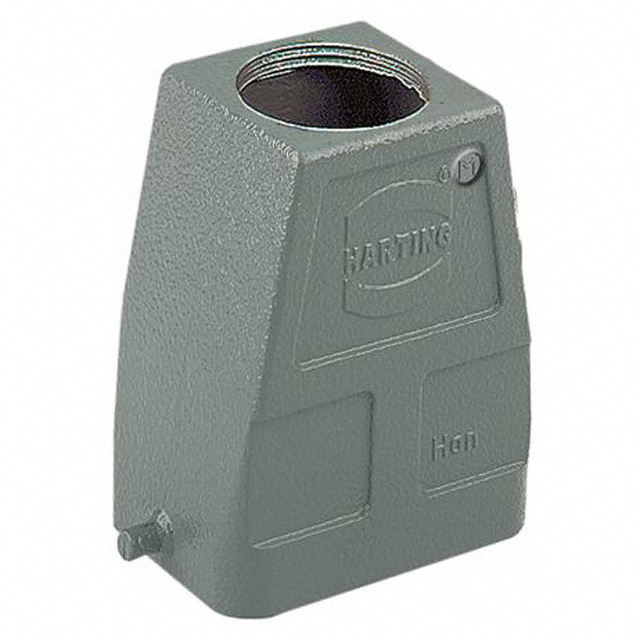

HEAVY DUTY CONNECTOR, M25 TOP ENTRY, 2 PEGS, HIGH PROFILE, HOOD, TOP ENTRY, ALUMINUM BODY, 1 LEVER

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, M25 TOP ENTRY, 2 PEGS, HIGH PROFILE, HOOD, TOP ENTRY, ALUMINUM BODY, 1 LEVER

Technical Specifications

Parameters and characteristics for this part

Specification	19300060446

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	6B
Size / Dimension [x]	60 mm
Size / Dimension [x]	2.362 in
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	72 mm
Size / Dimension [z]	2.835 in
Style	Top Entry
Thread Size	M25

Part	Ingress Protection	Style	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location	Size	Housing Finish	Housing Color	Housing Material	Thread Size	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]
HARTING Technology Group 19300060446	IP65 - Dust Tight Water Resistant	Top Entry	Hood	125 °C	-40 °C	Locking Clip (1) on Base Bottom	6B	Powder Coated	Gray	Aluminum Die Cast	M25	1.693 in	72 mm	60 mm	2.362 in	2.835 in	43 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry M25 6B IP65 - Dust Tight, Water Resistant
