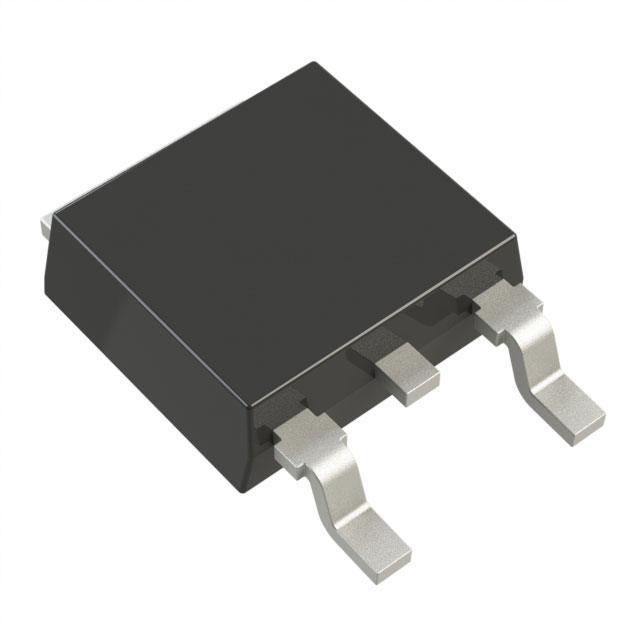

ZXMP6A16KQTC

Active

Diodes Inc

MOSFET BVDSS: 41V~60V TO252 T&R

Deep-Dive with AI

Search across all available documentation for this part.

ZXMP6A16KQTC

Active

Diodes Inc

MOSFET BVDSS: 41V~60V TO252 T&R

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZXMP6A16KQTC

Current - Continuous Drain (Id) @ 25°C	5.4 A
Drain to Source Voltage (Vdss)	60 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V
FET Type	P-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	24.2 nC
Input Capacitance (Ciss) (Max) @ Vds	1021 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3
Power Dissipation (Max)	2.11 W
Rds On (Max) @ Id, Vgs	85 mOhm
Supplier Device Package	TO-252 (DPAK)
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	1 V

ZXMP6A16DN8Q Series

Dual P-Channel 60V Enhancement Mode MOSFET

Part	Mounting Type	Technology	Gate Charge (Qg) (Max) @ Vgs [Max]	FET Type	Drive Voltage (Max Rds On, Min Rds On)	Package / Case	Rds On (Max) @ Id, Vgs	Power Dissipation (Max)	Vgs (Max)	Supplier Device Package	Current - Continuous Drain (Id) @ 25°C	Vgs(th) (Max) @ Id	Input Capacitance (Ciss) (Max) @ Vds	Drain to Source Voltage (Vdss)	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case [y]	Package / Case [x]	Power - Max [Max]	Configuration	Gate Charge (Qg) (Max) @ Vgs	FET Feature
Diodes Inc ZXMP6A16KQTC	Surface Mount	MOSFET (Metal Oxide)	24.2 nC	P-Channel	4.5 V 10 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	85 mOhm	2.11 W	20 V	TO-252 (DPAK)	5.4 A	1 V	1021 pF	60 V	-55 °C	150 °C
Diodes Inc ZXMP6A16DN8TC	Surface Mount	MOSFET (Metal Oxide)				8-SOIC	85 mOhm			8-SO	2.9 A	1 V	1021 pF	60 V	-55 °C	150 °C	3.9 mm	0.154 in	1.25 W	2 P-Channel	24.2 nC
Diodes Inc ZXMP6A16DN8QTA	Surface Mount	MOSFET (Metal Oxide)				8-SOIC	85 mOhm			8-SO	2.9 A	1 V	1021 pF	60 V	-55 °C	150 °C	3.9 mm	0.154 in		2 P-Channel	24.2 nC	Logic Level Gate

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2500	$ 0.65
		5000	$ 0.64

Description

General part information

ZXMP6A16DN8Q Series

This new generation of trench MOSFETs from Zetex utilizes a unique structure that combines the benefits of low on-resistance with fast switching speed. This makes them ideal for high efficiency, low voltage, power management applications.
