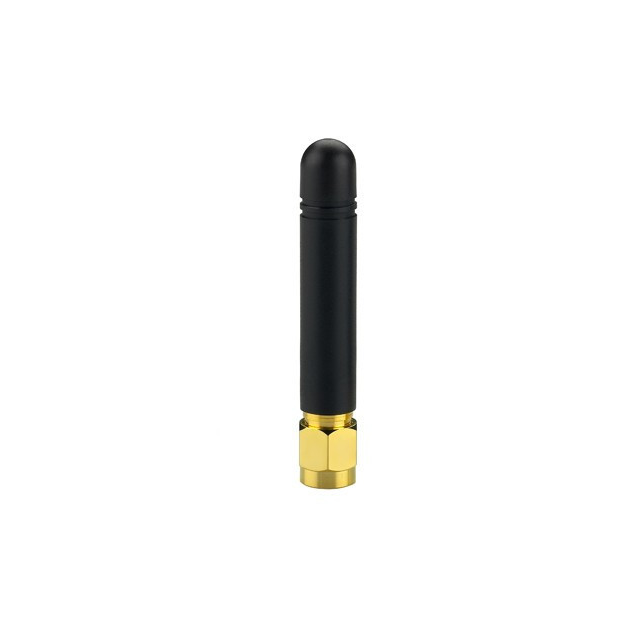

TI.10.0111
ActiveTAOGLAS
RF ANT 433MHZ WHIP STR SMA MALE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
TI.10.0111
ActiveTAOGLAS
RF ANT 433MHZ WHIP STR SMA MALE
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | TI.10.0111 |
|---|---|
| Antenna Type | Whip, Straight |
| Frequency (Center/Band) | 433 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 434 MHz |
| Frequency Range [Min] | 433 MHz |
| Gain | 0 dBi |
| Height (Max) [Max] | 48.2 mm |
| Height (Max) [Max] | 1.898 in |
| Ingress Protection | IP65 |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 5 W |
| Return Loss | -17 dB |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
TI.10 Series
RF ANTENNA Whip, Straight SMA Male Connector Mount
Documents
Technical documentation and resources
