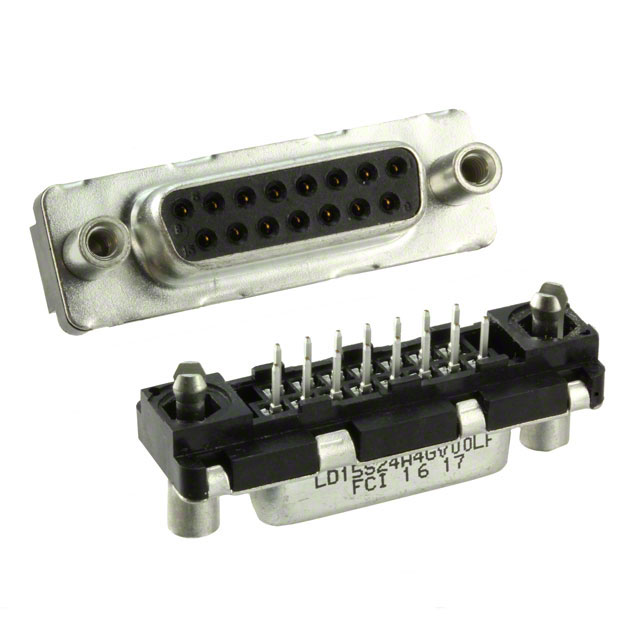

LD15S24A4GV00LF

Active

Amphenol ICC (FCI)

CONN D-SUB RCPT 15POS VERT SLDR

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN D-SUB RCPT 15POS VERT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	LD15S24A4GV00LF

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Thermoplastic
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Steel, Tin-Nickel Plated
Shell Size, Connector Layout	2
Termination	Solder
Voltage Rating	250 VDC

Part	Mounting Type	Dielectric Material	Voltage Rating	Contact Type	Contact Finish Thickness	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Connector Style	Shell Material, Finish	Color	Number of Rows	Current Rating (Amps)	Connector Type	Material Flammability Rating	Termination	Shell Size, Connector Layout	Contact Finish	Contact Material
Amphenol ICC (FCI) LD15S24A4GV00LF	Through Hole	Thermoplastic	250 VDC	Signal	Flash	15	105 ░C	-55 °C	Female Screwlock (4-40) Mating Side	D-Sub	Steel Tin-Nickel Plated	Black	2	5 A	Receptacle Female Sockets	UL94 V-0	Solder	2	Gold	Copper Alloy
