LOD-H01602DP/A-Y
ActiveLumex Opto/Components Inc.

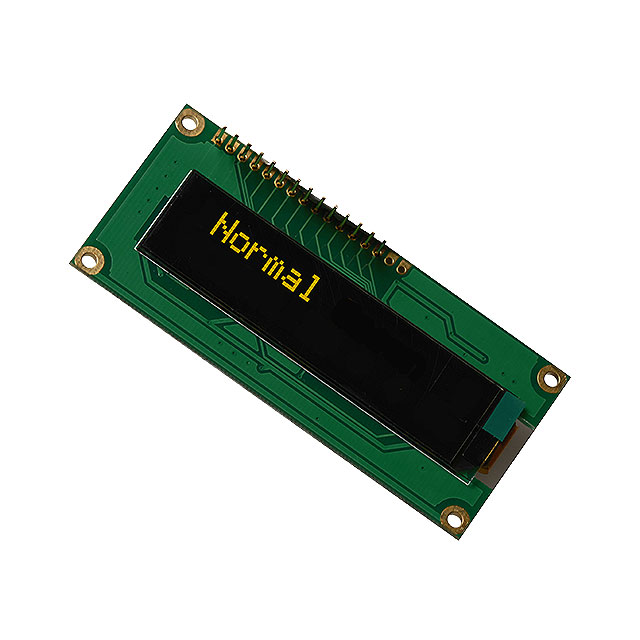

OLED MODULE 32DIG 16 X 2 PASSIVE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LOD-H01602DP/A-Y
ActiveLumex Opto/Components Inc.
OLED MODULE 32DIG 16 X 2 PASSIVE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LOD-H01602DP/A-Y |
|---|---|
| Background Color | Black |
| Character Format [x] | 5 Dots |
| Character Format [y] | 7 Dots |
| Character Size [y] | 2.97 mm |
| Character Size [z] | 5.57 mm |
| Display Format [x] | 16 |
| Display Format [y] | 2 |
| Display Mode | Passive |
| Display Type | OLED |
| Dot Size [x] | 0.57 mm |
| Dot Size [y] | 0.67 mm |
| Interface | Parallel, 8-Bit |
| Number of Characters | 32 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Outline L x W x H [x] | 80 mm |
| Outline L x W x H [y] | 36 mm |
| Outline L x W x H [z] | 3.8 mm |
| Text Color | Yellow |
| Viewing Area [x] | 58.22 mm |
| Viewing Area [y] | 13.52 mm |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LOD-H01602 Series
Character Display Module Passive 5 x 7 Dots OLED Parallel, 8-Bit 80.00mm x 36.00mm x 3.80mm
