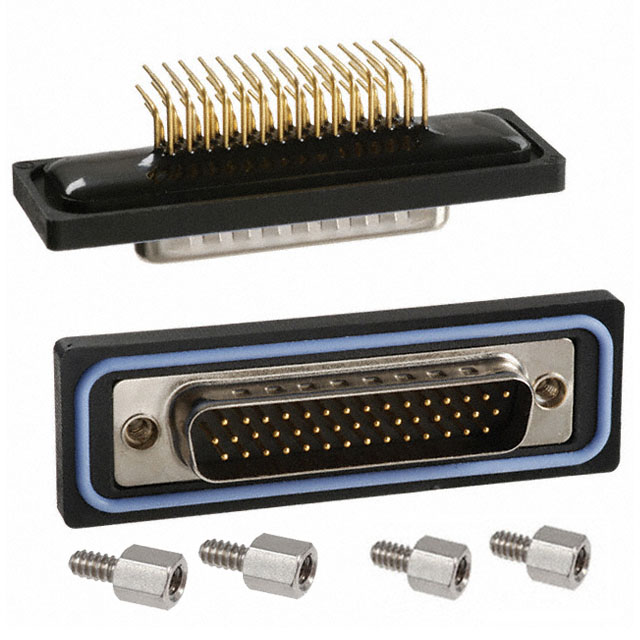

A-HDS 44 AA-WP

Active

Assmann WSW Components

CONN D-SUB HD PLUG 44P R/A SLDR

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN D-SUB HD PLUG 44P R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	A-HDS 44 AA-WP

Backset Spacing	4.8 mm
Backset Spacing	0.189 in
Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Dielectric Material	Glass Filled, Polyamide (PA), Nylon
Features	Grounding Indents
Flange Feature	Female Screwlock, Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	44
Number of Rows	3
Shell Size, Connector Layout [custom]	B, DB
Shell Size, Connector Layout [x]	3
Termination	Solder

Part	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [custom]	Contact Finish	Termination	Ingress Protection	Connector Type	Features	Color	Dielectric Material	Mounting Type	Number of Positions	Flange Feature	Contact Material	Number of Rows	Contact Type	Connector Style	Backset Spacing	Backset Spacing
Assmann WSW Components A-HDS 44 AA-WP	3	B DB	Gold	Solder	IP67 - Dust Tight Waterproof	Male Pins Plug	Grounding Indents	Black	Glass Filled Nylon Polyamide (PA)	Panel Mount Right Angle Through Hole	44	Female Screwlock Mating Side	Copper Alloy	3	Signal	D-Sub High Density	4.8 mm	0.189 in
Assmann WSW Components A-HDS 44 PP-WP	3	B DB	Gold	Solder	IP67 - Dust Tight Waterproof	Male Pins Plug	Grounding Indents	Black	Glass Filled Nylon Polyamide (PA)	Panel Mount Through Hole	44	Female Screwlock Mating Side	Copper Alloy	3	Signal	D-Sub High Density

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	20	$ 26.84

General part information

44 Position D-Sub, High Density Plug, Male Pins Connector
