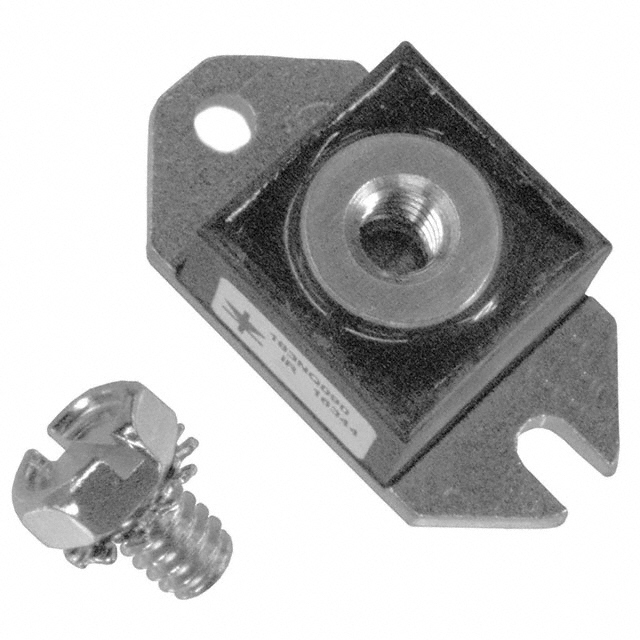

183NQ080

Obsolete

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 80V 180A D-67

Search across all available documentation for this part.

Obsolete

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 80V 180A D-67

Technical Specifications

Parameters and characteristics for this part

Specification	183NQ080

Capacitance @ Vr, F	4150 pF
Current - Average Rectified (Io)	180 A
Current - Reverse Leakage @ Vr	4.5 mA
Mounting Type	Chassis Mount
Package / Case	D-67 HALF-PAK
Speed	200 mA, 500 ns
Supplier Device Package	D-67 HALF-PAK
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	80 V
Voltage - Forward (Vf) (Max) @ If	950 mV

Part	Current - Reverse Leakage @ Vr	Supplier Device Package	Capacitance @ Vr, F	Speed	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Technology	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type
Vishay General Semiconductor - Diodes Division 183NQ080	4.5 mA	D-67 HALF-PAK	4150 pF	200 mA 500 ns	950 mV	180 A	Schottky	D-67 HALF-PAK	80 V	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 80 V 180A Chassis Mount D-67 HALF-PAK
