AAA4FBZH

Active

Switchcraft Inc.

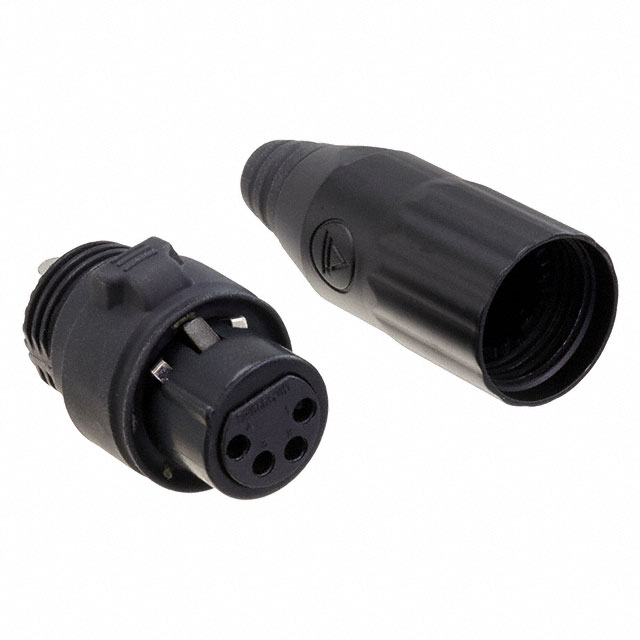

CONN PLUG FMALE XLR 4P SLDR CUP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG FMALE XLR 4P SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	AAA4FBZH

Applications	Audio, Instrumentation
Backshell Material, Plating	Chrome, Zinc
Cable Opening [Max] [diameter]	7.24 mm
Cable Opening [Max] [diameter]	0.285 in
Cable Opening [Min] [diameter]	0.15 in
Cable Opening [Min] [diameter]	3.81 mm
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Fastening Type	Latch Lock
Features	Backshell, Strain Relief, Ground, Cable Clamp
Ingress Protection	IP66
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Zinc Alloy
Shell Size - Insert	XLR
Shielding	Shielded

Part	Orientation	Mounting Type	Primary Material	Insert Material	Voltage Rating	Contact Finish - Mating	Shell Size - Insert	Shell Finish	Fastening Type	Applications	Features	Contact Material	Current Rating (Amps)	Shell Material	Backshell Material, Plating	Number of Positions	Color	Cable Opening [diameter]	Cable Opening [diameter]	Connector Type	Shielding	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]
Switchcraft Inc. AAA4FBAUZ	Keyed	Free Hanging (In-Line)	Metal	Thermoplastic	125 VAC	Gold	XLR	Chrome	Latch Lock	Audio Industrial Instrumentation Medical	Backshell Cable Clamp Ground Strain Relief	Copper Alloy	10 A	Zinc Alloy	Chrome Zinc	4	Black	2.54 mm 5.59 mm	0.1 in 0.22 in	Female Sockets Plug	Shielded
Switchcraft Inc. AAA4FBZH	Keyed	Free Hanging (In-Line)	Metal	Thermoplastic		Silver	XLR	Chrome	Latch Lock	Audio Instrumentation	Backshell Cable Clamp Ground Strain Relief	Copper Alloy		Zinc Alloy	Chrome Zinc	4	Black			Female Sockets Plug	Shielded	IP66	65 °C	-40 °C	0.15 in	3.81 mm	7.24 mm	0.285 in
Switchcraft Inc. AAA4FBAUZH	Keyed	Free Hanging (In-Line)	Metal	Thermoplastic		Gold	XLR	Chrome	Latch Lock	Audio Instrumentation	Backshell Cable Clamp Ground Strain Relief	Copper Alloy		Zinc Alloy	Chrome Zinc	4	Black			Female Sockets Plug	Shielded	IP66	65 °C	-40 °C	0.15 in	3.81 mm	7.24 mm	0.285 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.71

General part information

4 Position Circular Connector Plug, Female Sockets Solder Cup

Technical documentation and resources
