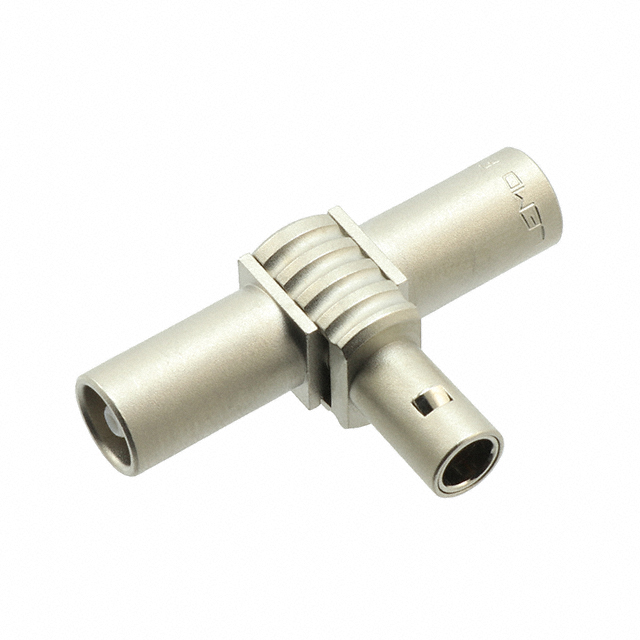

FTA.00.250.NTF

Active

LEMO

CONN ADAPT PLUG-JACK NIM-CAMAC

Search across all available documentation for this part.

Active

LEMO

CONN ADAPT PLUG-JACK NIM-CAMAC

Technical Specifications

Parameters and characteristics for this part

Specification	FTA.00.250.NTF

Adapter Series	NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549, Dual
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass, Bronze
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	NIM-CAMAC CD/N 549 Plug, Male Pin
Convert To (Adapter End)	NIM-CAMAC CD/N 549 Jack, Female Socket (2)
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Impedance	50 Ohms
Ingress Protection	IP50
Mating Cycles	5000
Mounting Type	Free Hanging (In-Line)
Style	T-Shape

Part	Convert From (Adapter End)	Adapter Type	Center Contact Plating	Style	Impedance	Dielectric Material	Fastening Type	Adapter Series	Conversion Type	Mounting Type	Mating Cycles	Ingress Protection	Body Material	Center Contact Material	Convert To (Adapter End)	Body Finish
LEMO FTA.00.250.NTF	NIM-CAMAC CD/N 549 Plug Male Pin	Plug to Jack	Gold	T-Shape	50 Ohms	Polytetrafluoroethylene (PTFE)	Push-Pull	NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549 Dual	Same Series	Free Hanging (In-Line)	5000	IP50	Brass	Brass Bronze	NIM-CAMAC CD/N 549 Jack Female Socket (2)	Nickel
LEMO FTA.00.250.CTF	NIM-CAMAC CD/N 549 Plug Male Pin	Plug to Jack	Gold	T-Shape	50 Ohms	Polytetrafluoroethylene (PTFE)	Push-Pull	NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549 Dual	Same Series	Free Hanging (In-Line)	5000	IP50	Brass	Brass Bronze	NIM-CAMAC CD/N 549 Jack Female Socket (2)	Chrome

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector NIM-CAMAC CD/N 549 Plug, Male Pin To NIM-CAMAC CD/N 549 Jack, Female Socket (2) 50 Ohms
