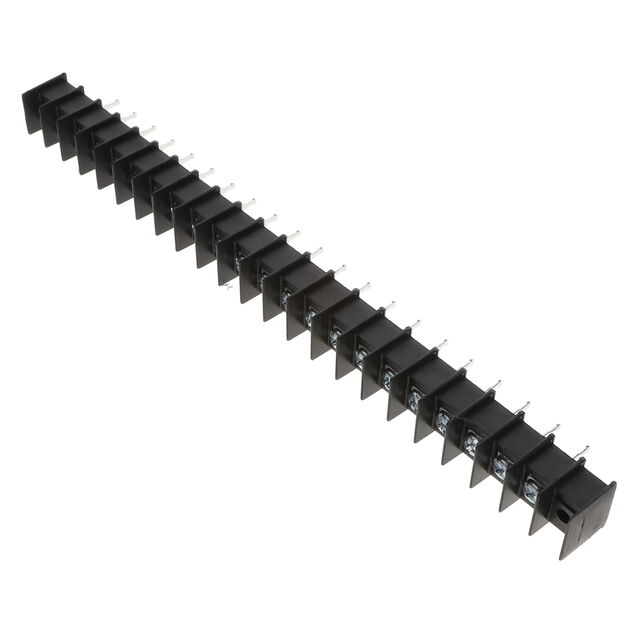

430200-21-0

Active

Curtis Industries

CONN BARRIER STRP 21CIRC 0.438"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Terminal Blocks Catalog

430200-21-0

Active

Curtis Industries

CONN BARRIER STRP 21CIRC 0.438"

Deep-Dive with AI

DocumentsDatasheet Terminal Blocks Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	430200-21-0

Barrier Type	2 Wall (Dual)
Bottom Termination	Solder Turret
Current Rating (Amps)	20 A
Features	Flange
Material - Insulation	Polypropylene (PP)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Circuits	21
Number of Rows	1
Number of Wire Entries	21
Operating Temperature	105 C
Pitch [x]	11.12 mm
Pitch [x]	0.438 in
Terminal Block Type	Barrier Block
Terminal Screw Finish	Zinc
Terminal Screw Material	Steel
Top Termination	Screws
Voltage Rating	600 V
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG

430200 Series

Part	Terminal Screw Material	Mounting Type	Voltage Rating	Operating Temperature	Pitch [x]	Pitch [x]	Terminal Block Type	Features	Number of Rows	Top Termination	Number of Circuits	Current Rating (Amps)	Number of Wire Entries	Barrier Type	Bottom Termination	Material - Insulation	Material Flammability Rating	Terminal Screw Finish	Wire Gauge [Min]	Wire Gauge [Max]	Number of Wire Entries [custom]
Curtis Industries 430200-16-0	Steel	Chassis Panel	600 V	105 C	11.12 mm	0.438 in	Barrier Block	Flange	1	Screws	16	20 A	16	2 Wall (Dual)	Solder Turret	Polypropylene (PP)	UL94 V-0	Zinc	12 AWG	22 AWG
Curtis Industries 430200-07-0	Steel	Chassis Panel	600 V	105 C	11.12 mm	0.438 in	Barrier Block	Flange	1	Screws	7	20 A	7	2 Wall (Dual)	Solder Turret	Polypropylene (PP)	UL94 V-0	Zinc	12 AWG	22 AWG
Curtis Industries 430200-06-0	Steel	Chassis Panel	600 V	105 C	11.12 mm	0.438 in	Barrier Block	Flange	1	Screws	6	20 A	6	2 Wall (Dual)	Solder Turret	Polypropylene (PP)	UL94 V-0	Zinc	12 AWG	22 AWG
Curtis Industries 430200-04-0	Steel	Chassis Panel	600 V	105 C	11.12 mm	0.438 in	Barrier Block	Flange	1	Screws	4	20 A	4	2 Wall (Dual)	Solder Turret	Polypropylene (PP)	UL94 V-0	Zinc	12 AWG	22 AWG
Curtis Industries 430200-15-0	Steel	Chassis Panel	600 V	105 C	11.12 mm	0.438 in	Barrier Block	Flange	1	Screws	15	20 A	15	2 Wall (Dual)	Solder Turret	Polypropylene (PP)	UL94 V-0	Zinc	12 AWG	22 AWG
Curtis Industries 430200-24-0	Steel	Chassis Panel	600 V	105 C	11.12 mm	0.438 in	Barrier Block	Flange	1	Screws	24	20 A		2 Wall (Dual)	Solder Turret	Polypropylene (PP)	UL94 V-0	Zinc	12 AWG	22 AWG
Curtis Industries 430200-11-0	Steel	Chassis Panel	600 V	105 C	11.12 mm	0.438 in	Barrier Block	Flange	1	Screws	11	20 A	11	2 Wall (Dual)	Solder Turret	Polypropylene (PP)	UL94 V-0	Zinc	12 AWG	22 AWG
Curtis Industries 430200-23-0	Steel	Chassis Panel	600 V	105 C	11.12 mm	0.438 in	Barrier Block	Flange	1	Screws	23	20 A		2 Wall (Dual)	Solder Turret	Polypropylene (PP)	UL94 V-0	Zinc	12 AWG	22 AWG	23
Curtis Industries 430200-21-0	Steel	Chassis Panel	600 V	105 C	11.12 mm	0.438 in	Barrier Block	Flange	1	Screws	21	20 A	21	2 Wall (Dual)	Solder Turret	Polypropylene (PP)	UL94 V-0	Zinc	12 AWG	22 AWG
Curtis Industries 430200-20-0	Steel	Chassis Panel	600 V	105 C	11.12 mm	0.438 in	Barrier Block	Flange	1	Screws	20	20 A	20	2 Wall (Dual)	Solder Turret	Polypropylene (PP)	UL94 V-0	Zinc	12 AWG	22 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.04
		10	$ 12.35
		25	$ 11.65
		50	$ 11.09
		100	$ 10.88
		250	$ 9.48
		500	$ 9.13
		1000	$ 8.77

Description

General part information

430200 Series

21 Circuit 0.438" (11.12mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Datasheet

Terminal Blocks Catalog

Datasheet
