AOLF-24D

Active

SRA Soldering Products

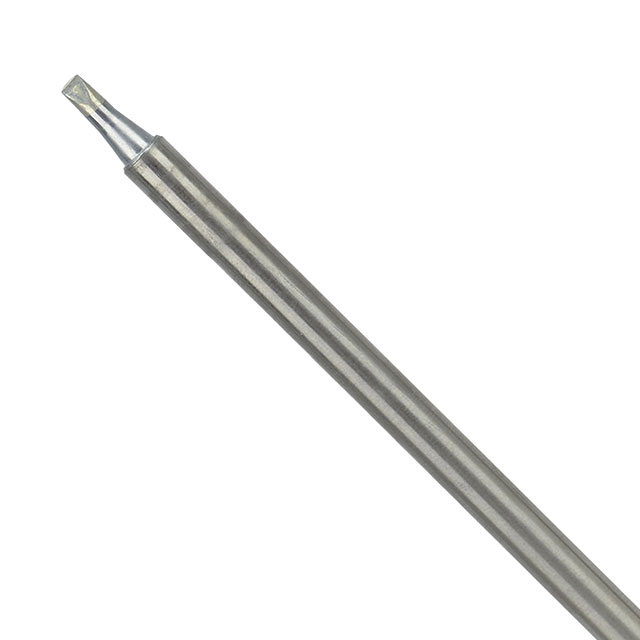

BEVEL SOLDERING IRON TIP WQ-24D

Search across all available documentation for this part.

Active

SRA Soldering Products

BEVEL SOLDERING IRON TIP WQ-24D

Technical Specifications

Parameters and characteristics for this part

Specification	AOLF-24D

For Use With/Related Products	2930, 2702A+, 2703A+, 2900
Height [z]	0.02 in
Height [z]	0.5 mm
Tip Type	Soldering
Width [x]	0.098 in
Width [x]	2.5 mm

Part	Tip Type	For Use With/Related Products	Tip Shape	Width [x]	Width [x]	Length [x]	Length [x]	Diameter [diameter]	Diameter [diameter]	Height [z]	Height [z]	Width
SRA Soldering Products AOLF-I	Soldering	2702A+ 2703A+ 2900 2930	Conical
SRA Soldering Products AOLF-2B	Soldering	2702A+ 2703A+ 2900 2930	Conical
SRA Soldering Products AOLF-52D	Soldering	2702A+ 2703A+ 2900 2930		1.2 mm	0.047 in	0.205 in	5.21 mm
SRA Soldering Products AOLF-16D	Soldering	2702A+ 2703A+ 2900 2930						0.063 in	1.6 mm
SRA Soldering Products AOLF-02J	Soldering	2702A+ 2703A+ 2900 2930	Bent 30°
SRA Soldering Products AOLF-24D	Soldering	2702A+ 2703A+ 2900 2930		2.5 mm	0.098 in					0.02 in	0.5 mm
SRA Soldering Products AOLF-1C	Soldering	2702A+ 2703A+ 2900 2930	Chisel
SRA Soldering Products AOLF-LB	Soldering	2702A+ 2703A+ 2900 2930	Conical
SRA Soldering Products AOLF-1403	Soldering	2702A+ 2703A+ 2900 2930	Flat		0.984 in							25 mm
SRA Soldering Products AOLF-1BC	Soldering	2702A+ 2703A+ 2900 2930	Chisel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.99

General part information

BEVEL SOLDERING IRON TIP WQ-24D
