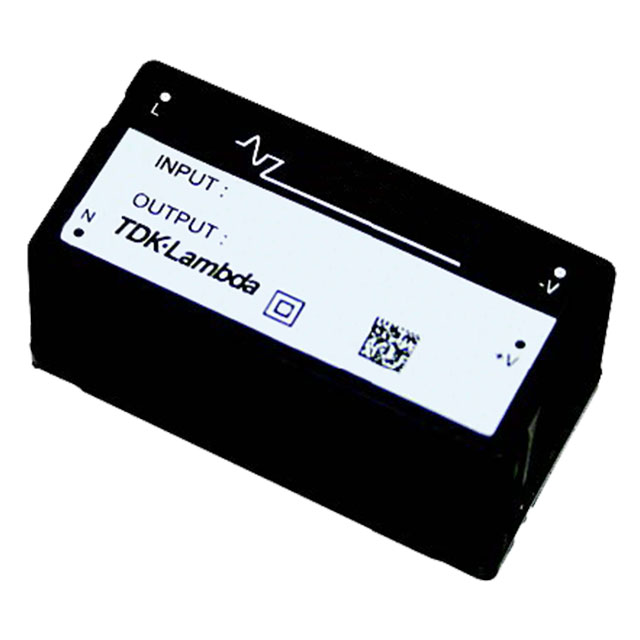

KWS15A-24
ActiveTDK-LAMBDA
AC/DC POWER SUPPLY SINGLE-OUT 24V 0.7A 16.8W 4-PIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KWS15A-24
ActiveTDK-LAMBDA
AC/DC POWER SUPPLY SINGLE-OUT 24V 0.7A 16.8W 4-PIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KWS15A-24 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) [Max] | 700 mA |
| Efficiency | 85 % |
| Features | Universal Input |
| Line Regulation | 150 mV |
| Load Regulation | 96 mV |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -10 °C |
| Package / Case | 4-DIP Module |
| Power (Watts) | 15 W |
| Size / Dimension [x] | 2 in |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 24 mm |
| Size / Dimension [z] | 0.94 in |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 265 VAC |
| Voltage - Input [Min] | 120 VDC, 85 VAC |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
KWS15A Series
Enclosed AC DC Converters 1 Output 24V 700mA 85 ~ 265 VAC, 120 ~ 370 VDC Input
