C3BEG-3406M

Active

CW Industries

IDC CABLE - CSR34G/AE34M/CCE34G

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CSR34G/AE34M/CCE34G

Technical Specifications

Parameters and characteristics for this part

Part	Color	Cable Termination	Number of Rows	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Shielding	Connector Type	Length [x]	Length [x]	Features	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable	Number of Positions	Length	Length	Length
CW Industries C3BEG-3418M	Multiple Ribbon	IDC	2	Gold	10 Áin	0.25 Ám	Unshielded	Socket to Card Edge	457.2 mm	1.5 ft	Strain Relief	0.1 in	2.54 mm	0.05 "	1.27 mm	34
CW Industries C3BEG-3418G		IDC	2	Gold	10 Áin	0.25 Ám	Unshielded	Socket to Card Edge	457.2 mm	1.5 ft	Strain Relief	0.1 in	2.54 mm	0.05 "	1.27 mm	34
CW Industries C3BEG-3406M	Multiple Ribbon	IDC	2	Gold	10 Áin	0.25 Ám	Unshielded	Socket to Card Edge			Strain Relief	0.1 in	2.54 mm	0.05 "	1.27 mm	34	152.4 mm	6 "	0.5 '
CW Industries C3BEG-3406G		IDC	2	Gold	10 Áin	0.25 Ám	Unshielded	Socket to Card Edge			Strain Relief	0.1 in	2.54 mm	0.05 "	1.27 mm	34	152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

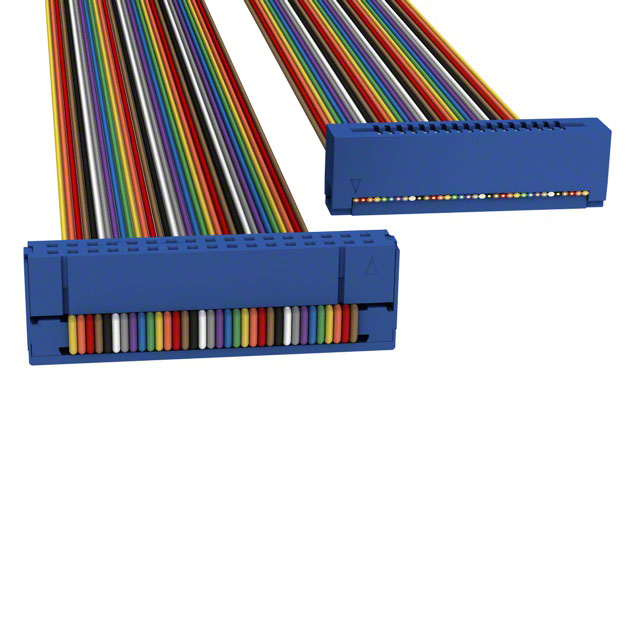

34 Position Cable Assembly Rectangular Socket to Card Edge 0.500' (152.40mm, 6.00")
