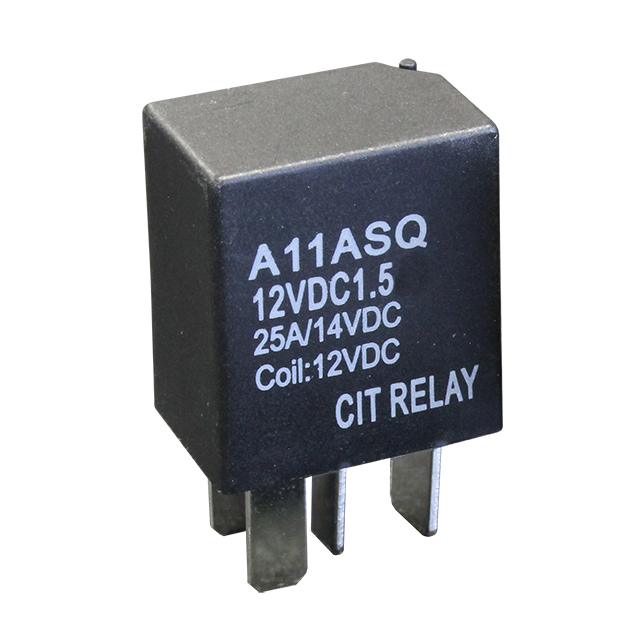

A11ASQ12VDC1.5

Active

CIT Relay and Switch

75V@DC 30A 12V ONE NORMALLY OPEN: 1A (SPST-NO) SOCKETABLE AUTOMOTIVE RELAYS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet A Series Relays

A11ASQ12VDC1.5

Active

CIT Relay and Switch

75V@DC 30A 12V ONE NORMALLY OPEN: 1A (SPST-NO) SOCKETABLE AUTOMOTIVE RELAYS ROHS

Deep-Dive with AI

DocumentsDatasheet A Series Relays

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A11ASQ12VDC1.5

Coil Current	125 mA
Coil Power	1.5 W
Coil Resistance	96 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	30 A
Features	Sealed - Fully
Mounting Type	Socketable
Must Operate Voltage	8.4 VDC
Must Release Voltage	1.2 VDC
Operate Time	10 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Release Time	7 ms
Switching Voltage	75 VDC
Termination Style	Plug In, Quick Connect - 0.187" (4.7mm)

A11ASQ Series

Part	Must Operate Voltage	Release Time	Coil Power	Coil Type	Termination Style	Contact Material	Mounting Type	Coil Current	Contact Form	Must Release Voltage	Features	Coil Voltage	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Coil Resistance	Switching Voltage	Operate Time
CIT Relay and Switch A11ASQ24VDC1.2D	18 VDC	7 ms	1.2 W	Non Latching	Plug In Quick Connect - 0.187" (4.7mm)	Silver Tin Oxide (AgSnO)	Socketable	50 mA	SPST-NO (1 Form A)	2.4 VDC	Diode Sealed - Fully	24 VDC	30 A	85 °C	-40 °C	480 Ohms	75 VDC	10 ms
CIT Relay and Switch A11ASQ24VDC1.2	18 VDC	7 ms	1.2 W	Non Latching	Plug In Quick Connect - 0.187" (4.7mm)	Silver Tin Oxide (AgSnO)	Socketable	50 mA	SPST-NO (1 Form A)	2.4 VDC	Sealed - Fully	24 VDC	30 A	85 °C	-40 °C	480 Ohms	75 VDC	10 ms
CIT Relay and Switch A11ASQ12VDC1.5	8.4 VDC	7 ms	1.5 W	Non Latching	Plug In Quick Connect - 0.187" (4.7mm)	Silver Tin Oxide (AgSnO)	Socketable	125 mA	SPST-NO (1 Form A)	1.2 VDC	Sealed - Fully	12 VDC	30 A	85 °C	-40 °C	96 Ohms	75 VDC	10 ms
CIT Relay and Switch A11ASQ24VDC1.5	18 VDC	7 ms	1.5 W	Non Latching	Plug In Quick Connect - 0.187" (4.7mm)	Silver Tin Oxide (AgSnO)	Socketable	62.5 mA	SPST-NO (1 Form A)	2.4 VDC	Sealed - Fully	24 VDC	30 A	85 °C	-40 °C	384 Ohms	75 VDC	10 ms
CIT Relay and Switch A11ASQ12VDC1.5R	8.4 VDC	7 ms	1.5 W	Non Latching	Plug In Quick Connect - 0.187" (4.7mm)	Silver Tin Oxide (AgSnO)	Socketable	125 mA	SPST-NO (1 Form A)	1.2 VDC	Resistor Sealed - Fully	12 VDC	30 A	85 °C	-40 °C	96 Ohms	75 VDC	10 ms
CIT Relay and Switch A11ASQ24VDC1.5R	18 VDC	7 ms	1.5 W	Non Latching	Plug In Quick Connect - 0.187" (4.7mm)	Silver Tin Oxide (AgSnO)	Socketable	62.5 mA	SPST-NO (1 Form A)	2.4 VDC	Resistor Sealed - Fully	24 VDC	30 A	85 °C	-40 °C	384 Ohms	75 VDC	10 ms
CIT Relay and Switch A11ASQ24VDC1.2R	18 VDC	7 ms	1.2 W	Non Latching	Plug In Quick Connect - 0.187" (4.7mm)	Silver Tin Oxide (AgSnO)	Socketable	50 mA	SPST-NO (1 Form A)	2.4 VDC	Resistor Sealed - Fully	24 VDC	30 A	85 °C	-40 °C	480 Ohms	75 VDC	10 ms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.08
		10	$ 1.95
		25	$ 1.74
		50	$ 1.65
		100	$ 1.56
		250	$ 1.39
		500	$ 1.30
		1000	$ 1.22
		5000	$ 1.17
LCSC	Piece	1	$ 3.10
		200	$ 1.24
		500	$ 1.20
		1000	$ 1.18

Description

General part information

A11ASQ Series

75V@DC 30A 12V ONE NORMALLY OPEN: 1A (SPST-NO) SOCKETABLE AUTOMOTIVE RELAYS ROHS
