C0474.41.03

Active

Prysmian Group

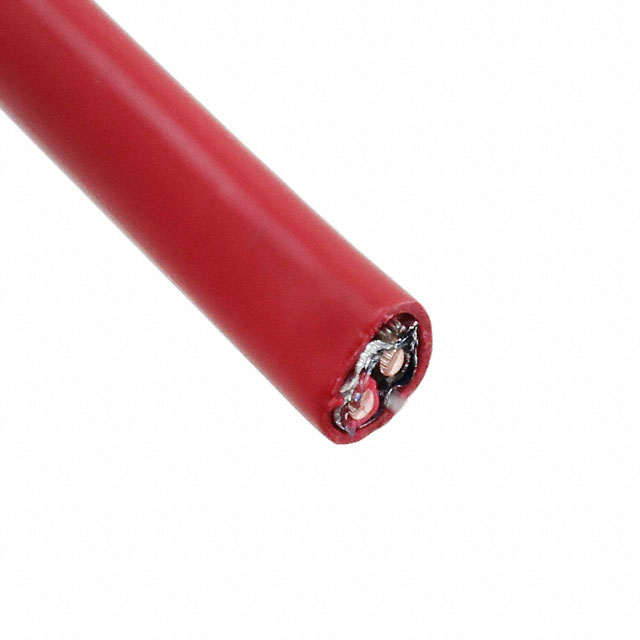

CABLE 2COND 16AWG RED SHLD 50'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 2COND 16AWG RED SHLD 50'

Technical Specifications

Parameters and characteristics for this part

Specification	C0474.41.03

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Annealed Bare
Conductor Strand	Solid
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	5.44 mm
Jacket (Insulation) Diameter [diameter]	0.214 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Red
Length	15.24 m, 304.8 m
Length	1000 ft
Length [x]	50 ft
Number of Conductors	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Ratings	ASTM B-3
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Alarm, Safety
Voltage	300 V
Wire Gauge	16 AWG

Part	Operating Temperature [Max]	Operating Temperature [Min]	Shield Type	Usage	Number of Conductors	Jacket (Insulation) Material	Conductor Insulation	Ratings	Shield Material	Conductor Material	Length	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Jacket Color	Features	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand	Shield Coverage	Wire Gauge	Length
Prysmian Group C0474.41.03	60 °C	0 °C	Foil	Alarm Safety	2	Poly-Vinyl Chloride (PVC)	Polypropylene (PP)	ASTM B-3	Flexfoil®	Copper Annealed Bare	15.24 m 304.8 m	50 ft	5.44 mm	0.214 in	Multi-Conductor	Red	Drain Wire	300 V	0.02 in	0.508 mm	Solid	100 %	16 AWG	1000 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Red 16 AWG Foil 1000.0' (304.8m)

Technical documentation and resources

No documents available
