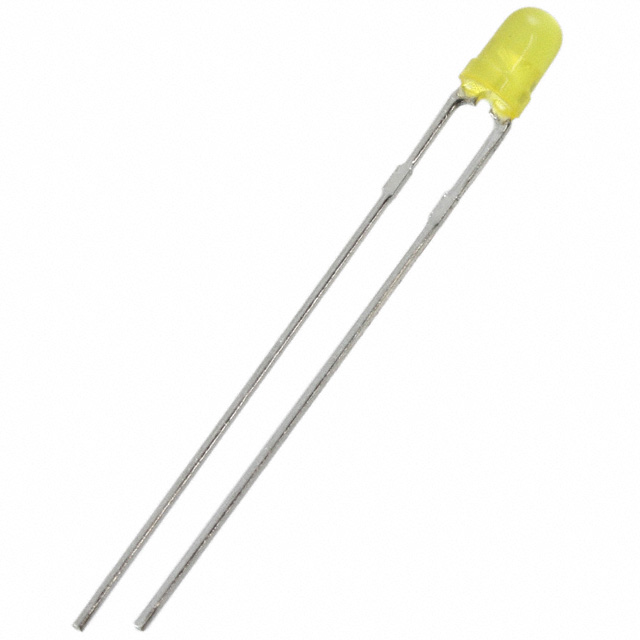

WP937YYD

Active

Kingbright

LED YELLOW DIFFUSED T-1 T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WP937YYD

Active

Kingbright

LED YELLOW DIFFUSED T-1 T/H

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WP937YYD

Color	Yellow
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	5.6 mm
Lens Color	Yellow
Lens Size	3 mm
Lens Size	T-1
Lens Style	Round with Domed Top
Lens Transparency	Diffused
Millicandela Rating	9 mcd
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension [diameter]	2.9 mm
Supplier Device Package	T-1
Viewing Angle	60 °
Voltage - Forward (Vf) (Typ)	2.1 V
Wavelength - Dominant	588 nm
Wavelength - Peak	590 nm

WP937 Series

Part	Voltage Rating	Lens Style	Color	Mounting Type	Current	Lens Type	Wavelength - Peak	Configuration	Millicandela Rating	Lens Size	Lens Size	Viewing Angle	Wavelength - Dominant	Size / Dimension [diameter]	Supplier Device Package	Height (Max) [Max] [z]	Package / Case	Lens Color	Lens Transparency	Voltage - Forward (Vf) (Typ)	Current - Test	Lens Size [diameter]	Wavelength - Peak [custom]	Wavelength - Dominant [custom]	Current - Test
Kingbright WP937EW/EGW	2 V 2.2 V	Round with Domed Top	Green Red	Through Hole Right Angle	25 mA 30 mA	Diffused White	568 nm 617 nm	Single	10 mcd 14 mcd	3 mm	T-1	60 °
Kingbright WP937YYD		Round with Domed Top	Yellow	Through Hole			590 nm	Standard	9 mcd	3 mm	T-1	60 °	588 nm	2.9 mm	T-1	5.6 mm	Radial	Yellow	Diffused	2.1 V	20 mA
Kingbright WP937MD/2EGW	2 V 2.2 V	Round with Domed Top	Green (x 1) Red (x 1)	Through Hole Right Angle	25 mA 30 mA	Diffused White	568 nm 617 nm	2 High	10 mcd 14 mcd	3 mm	T-1	60 °
Kingbright WP937AD/EGW	2 V 2.2 V	Round with Domed Top	Green Red	Through Hole Right Angle	25 mA 30 mA	Diffused White	568 nm 617 nm	Single	10 mcd 14 mcd	3 mm	T-1	60 °
Kingbright WP937SA/3EGW	2 V 2.2 V	Round with Domed Top	Green Red (x 3)	Through Hole Right Angle	25 mA 30 mA	Diffused White		3 High	10 mcd 14 mcd			60 °										2.9 mm	565 nm 627 nm
Kingbright WP937EYW		Round with Domed Top	Red Yellow	Through Hole			590 nm 627 nm	Bidirectional	8 mcd 10 mcd	3 mm	T-1	60 °		2.9 mm	T-1	5.6 mm	Radial	White	Diffused	2 V 2.1 V				588 nm 617 nm	20mA Red 20mA Yellow
Kingbright WP937GGD		Round with Domed Top	Green	Through Hole			565 nm	Bidirectional	10 mcd	3 mm	T-1	60 °	568 nm	2.9 mm	T-1	5.6 mm	Radial	Green	Diffused	2.2 V	20 mA
Kingbright WP937IID		Round with Domed Top	Red	Through Hole			627 nm	Standard	4 mcd	3 mm	T-1	60 °	617 nm	2.9 mm	T-1	5.6 mm	Radial	Red	Diffused	2 V	20 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.53
		10	$ 0.32
		100	$ 0.19
		1000	$ 0.15
		2000	$ 0.13
		5000	$ 0.12
		20000	$ 0.11
		40000	$ 0.11

Description

General part information

WP937 Series

Yellow 588nm LED Indication - Discrete 2.1V Radial
