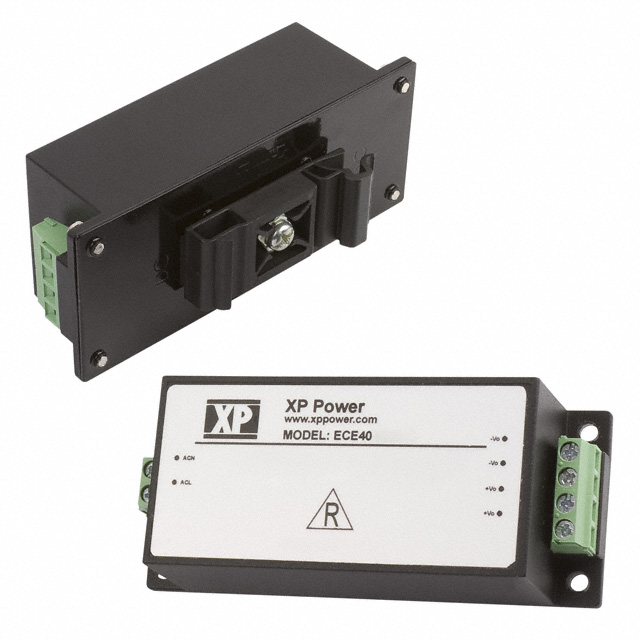

ECE40US03-SD

Active

XP POWER

AC/DC DIN RAIL SUPPLY 3.3V 40W

Search across all available documentation for this part.

Active

XP POWER

AC/DC DIN RAIL SUPPLY 3.3V 40W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Isolation	Voltage - Output 1	Current - Output 1	Mounting Type	Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Power (Watts)	Applications	Efficiency	Standard Number	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Input Type	Current - Output (Max) [Max]
XP POWER ECE40US05-S	3000 V	5 V	8 A	Chassis Mount	DC Input Capable Universal Input	28.5 mm	1.57 "	3.78 "	40 mm	1.12 in	96 mm	Enclosed	70 °C	-25 °C	1	40 W	ITE (Commercial)	77 %	62368-1
XP POWER ECE40US24-SD	3000 V	24 V			Universal Input	28.5 mm	1.57 "	3.78 "	40 mm	1.12 in	96 mm		70 °C	-25 °C	1	40 W	ITE (Commercial)	85 %	62368-1	85 VAC	264 VAC	AC	1.67 A
XP POWER ECE40US03-SD	3000 V	3.3 V			Universal Input	28.5 mm	1.57 "	3.78 "	40 mm	1.12 in	96 mm		70 °C	-25 °C	1	40 W	ITE (Commercial)	73 %	62368-1	85 VAC	264 VAC	AC	10 A
XP POWER ECE40US03-S	3000 V	3.3 V	10 A	Chassis Mount	DC Input Capable Universal Input	28.5 mm	1.57 "	3.78 "	40 mm	1.12 in	96 mm	Enclosed	70 °C	-25 °C	1	40 W	ITE (Commercial)	73 %	62368-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
