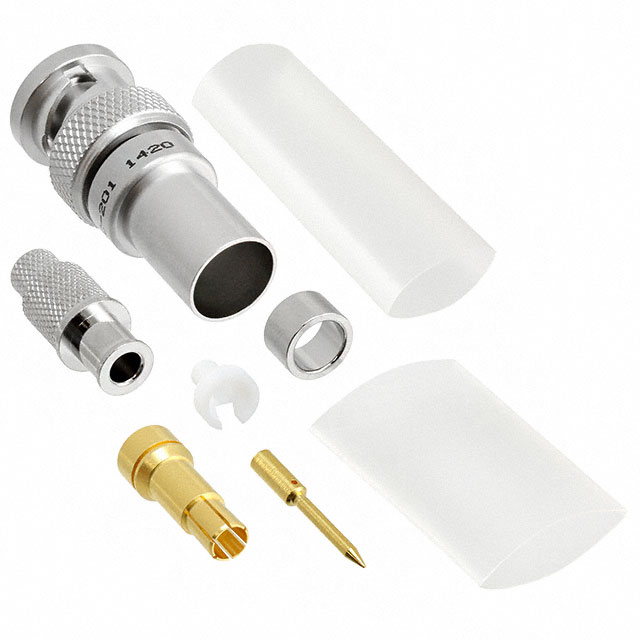

PL74C-201
ActiveCinch Connectivity Solutions Trompeter
CONN TRB PLUG STR CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
PL74C-201
ActiveCinch Connectivity Solutions Trompeter
CONN TRB PLUG STR CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PL74C-201 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | M17/176-00002 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | Twinaxial/Triaxial, TRB |
| Connector Type | Plug, Male Pin (Concentric) |
| Contact Termination | Crimp |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 500 MHz |
| Housing Color | Silver |
| Impedance | Non-Constant |
| Includes | 1 Strain Relief, 1 Connector, 1 Heat Shrink |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
| Voltage Rating | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 57.43 | |
| 10 | $ 44.56 | |||
| 25 | $ 40.48 | |||
| 50 | $ 39.12 | |||
Description
General part information
PL74 Series
TRB, Twinaxial/Triaxial Connector Plug, Male Pin (Concentric) Non-Constant Free Hanging (In-Line) Crimp
Documents
Technical documentation and resources
No documents available
