AOZ6605PI-1
ActiveAlpha & Omega Semiconductor Inc.
IC REG BUCK ADJ 5A 8SO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AOZ6605PI-1
ActiveAlpha & Omega Semiconductor Inc.
IC REG BUCK ADJ 5A 8SO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AOZ6605PI-1 |
|---|---|
| Current - Output | 5 A |
| Frequency - Switching | 600 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 0.154 in |
| Package / Case | 8-SOIC |
| Package / Case | 3.9 mm |
| Supplier Device Package | 8-SO-EP |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 18 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output (Max) [Max] | 15.3 V |
| Voltage - Output (Min/Fixed) | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.24 | |
| 10 | $ 0.76 | |||
| 25 | $ 0.63 | |||
| 100 | $ 0.49 | |||
| 250 | $ 0.42 | |||
| 500 | $ 0.37 | |||
| 1000 | $ 0.34 | |||
| Digi-Reel® | 1 | $ 1.24 | ||
| 10 | $ 0.76 | |||
| 25 | $ 0.63 | |||
| 100 | $ 0.49 | |||
| 250 | $ 0.42 | |||
| 500 | $ 0.37 | |||
| 1000 | $ 0.34 | |||
| Tape & Reel (TR) | 3000 | $ 0.29 | ||
| 6000 | $ 0.27 | |||
| 9000 | $ 0.26 | |||
| 15000 | $ 0.24 | |||
Description
General part information
AOZ6605 Series

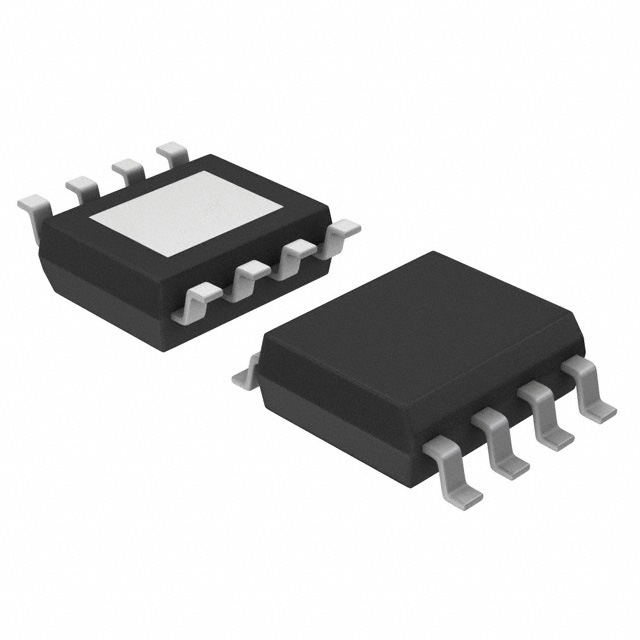

Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 5A 8-SOIC (0.154", 3.90mm Width) Exposed Pad
