C2RXS-4018M

Active

CW Industries

DIP CABLE - CDR40S/AE40M/X

Search across all available documentation for this part.

Active

CW Industries

DIP CABLE - CDR40S/AE40M/X

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Features	Pitch - Connector	Pitch - Connector	Shielding	Number of Positions	Length [x]	Length [x]	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Usage	Pitch - Cable	Pitch - Cable	Contact Finish	Color	Cable Termination	Length	Length	Length
CW Industries C2RXS-4036M	DIP to Cable	Strain Relief	0.1 in	2.54 mm	Unshielded	40	3 ft	914.4 mm	2	2.54 µm	100 µin	Board In Socket (0.6")	0.05 "	1.27 mm	Tin	Multiple Ribbon	IDC
CW Industries C2RXS-4006G	DIP to Cable	Strain Relief	0.1 in	2.54 mm	Unshielded	40			2	2.54 µm	100 µin	Board In Socket (0.6")	0.05 "	1.27 mm	Tin		IDC	152.4 mm	6 "	0.5 '
CW Industries C2RXS-4018M	DIP to Cable	Strain Relief	0.1 in	2.54 mm	Unshielded	40	1.5 ft	457.2 mm	2	2.54 µm	100 µin	Board In Socket (0.6")	0.05 "	1.27 mm	Tin	Multiple Ribbon	IDC
CW Industries C2RXS-4018G	DIP to Cable	Strain Relief	0.1 in	2.54 mm	Unshielded	40	1.5 ft	457.2 mm	2	2.54 µm	100 µin	Board In Socket (0.6")	0.05 "	1.27 mm	Tin		IDC
CW Industries C2RXS-4006M	DIP to Cable	Strain Relief	0.1 in	2.54 mm	Unshielded	40			2	2.54 µm	100 µin	Board In Socket (0.6")	0.05 "	1.27 mm	Tin	Multiple Ribbon	IDC	152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

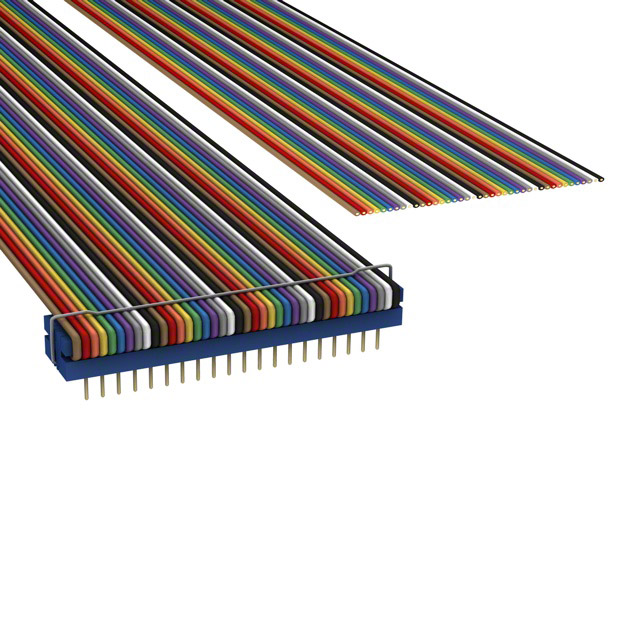

40 Position Cable Assembly Rectangular DIP to Cable 1.50' (457.20mm)
