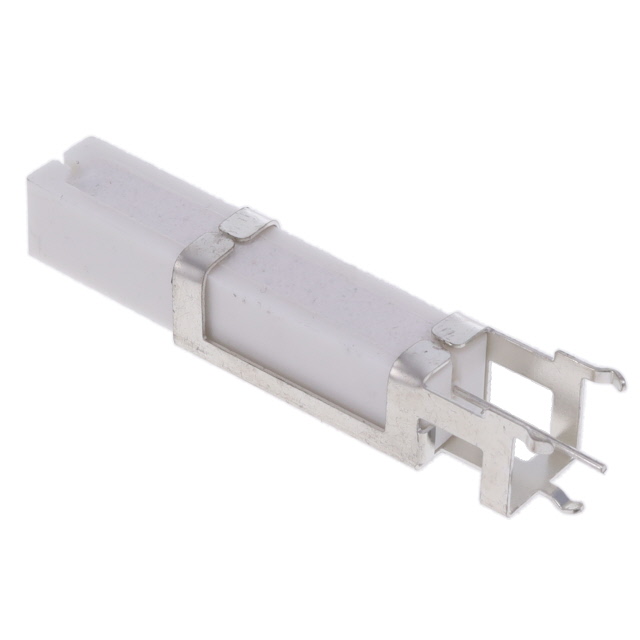

SPSR102K2J

Active

TE Connectivity Passive Product

RES 2.2K OHM 5% 10W RADIAL

Search across all available documentation for this part.

Active

TE Connectivity Passive Product

RES 2.2K OHM 5% 10W RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	SPSR102K2J

Composition	Metal Film
Features	Safety, Flame Proof, Moisture Resistant
Height - Seated (Max) [Max] [z]	61.5 mm
Height - Seated (Max) [Max] [z]	2.421 in
Number of Terminations	2
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Power (Watts)	10 W
Resistance	2200 Ohms
Size / Dimension [x]	12 mm
Size / Dimension [x]	0.472 in
Size / Dimension [y]	0.433 in
Size / Dimension [y]	11 mm
Supplier Device Package	Radial Lead
Temperature Coefficient	300 ppm/°C
Tolerance	5 %

Part	Number of Terminations	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Resistance	Composition	Supplier Device Package	Package / Case	Temperature Coefficient	Power (Watts)	Features
TE Connectivity Passive Product SPSR102K2J	2	61.5 mm	2.421 in	5 %	0.433 in	12 mm	0.472 in	11 mm	-55 °C	250 °C	2200 Ohms	Metal Film	Radial Lead	Radial	300 ppm/°C	10 W	Flame Proof Moisture Resistant Safety

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.2 kOhms ±5% 10W Through Hole Resistor Radial Flame Proof, Moisture Resistant, Safety Metal Film
