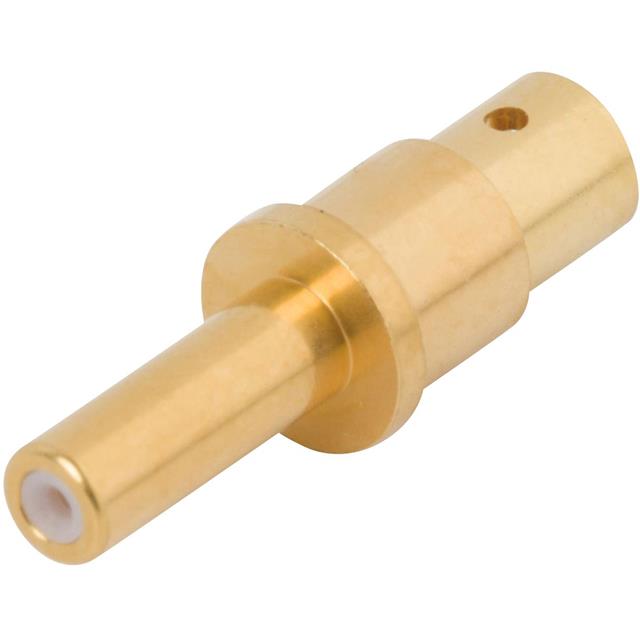

8001-4102

Active

Amphenol SV Microwave

CONN PIN CONTACT GOLD

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN PIN CONTACT GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Cable Group	Cable Group	Mounting Type	Pin or Socket	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Impedance
Amphenol SV Microwave 8001-4108	Gold	0.085 in	RG-405	Free Hanging (In-Line)	Socket	Beryllium Copper	50 µin	1.27 µm	50 Ohms
Amphenol SV Microwave 8001-4102	Gold	0.085 in	RG-405	Free Hanging (In-Line)	Pin	Beryllium Copper	50 µin	1.27 µm	50 Ohms
Amphenol SV Microwave 8001-4107	Gold	0.085 in	RG-405	Free Hanging (In-Line)	Pin	Beryllium Copper	50 µin	1.27 µm	50 Ohms
Amphenol SV Microwave 8001-4103	Gold	0.141 in	RG-402 (.141" Flexible)	Free Hanging (In-Line)	Socket	Beryllium Copper	50 µin	1.27 µm	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 32.63

General part information

Pin Contact Coax Gold

Technical documentation and resources
