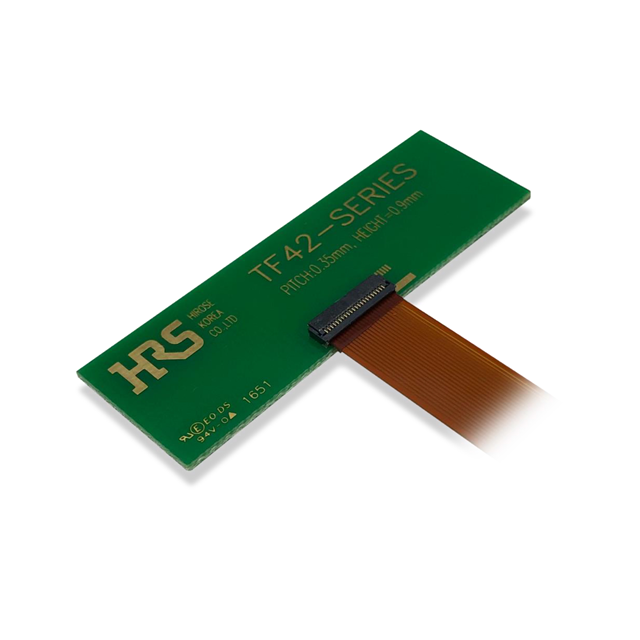

TF42-22S-0.35SH(800)

Active

Hirose Electric USA, Inc.

CONN FFC 22POS 0.35MM SMD

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN FFC 22POS 0.35MM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	TF42-22S-0.35SH(800)

Actuator Color	Black
Actuator Material	Liquid Crystal Polymer (LCP)
Cable End Type	Notched
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Material	Phosphor Bronze
Current Rating (Amps)	400 mA
Features	Zero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness	0.2 mm
Flat Flex Type	FPC
Height Above Board	0.9 mm
Height Above Board	0.035 "
Housing Color	Black
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Flip Lock, Backlock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	22 positions
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.35 mm
Pitch [x]	0.014 in
Termination	Solder
Voltage Rating	30 VDC

Part	Material Flammability Rating	Housing Color	Contact Material	Flat Flex Type	Actuator Material	Housing Material	Mating Cycles	Connector/Contact Type	FFC, FCB Thickness	Features	Contact Finish	Number of Positions	Height Above Board	Height Above Board	Actuator Color	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Locking Feature	Cable End Type	Current Rating (Amps)	Mounting Type	Termination	Voltage Rating	Number of Positions
Hirose Electric USA, Inc. TF42-22S-0.35SH(800)	UL94 V-0	Black	Phosphor Bronze	FPC	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	20	Contacts Bottom	0.2 mm	Solder Retention Zero Insertion Force (ZIF)	Gold	22 positions	0.9 mm	0.035 "	Black	0.35 mm	0.014 in	85 °C	-55 °C	Backlock Flip Lock	Notched	400 mA	Surface Mount Right Angle	Solder	30 VDC
Hirose Electric USA, Inc. TF42-16S-0.35SH(800)	UL94 V-0	Black	Phosphor Bronze	FPC	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	20	Contacts Bottom	0.2 mm	Solder Retention Zero Insertion Force (ZIF)	Gold		0.9 mm	0.035 "	Black	0.35 mm	0.014 in	85 °C	-55 °C	Backlock Flip Lock	Notched	400 mA	Surface Mount Right Angle	Solder	30 VDC	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 1.03

General part information

22 Position FPC Connector Contacts, Bottom 0.014" (0.35mm) Surface Mount, Right Angle

Technical documentation and resources

No documents available
