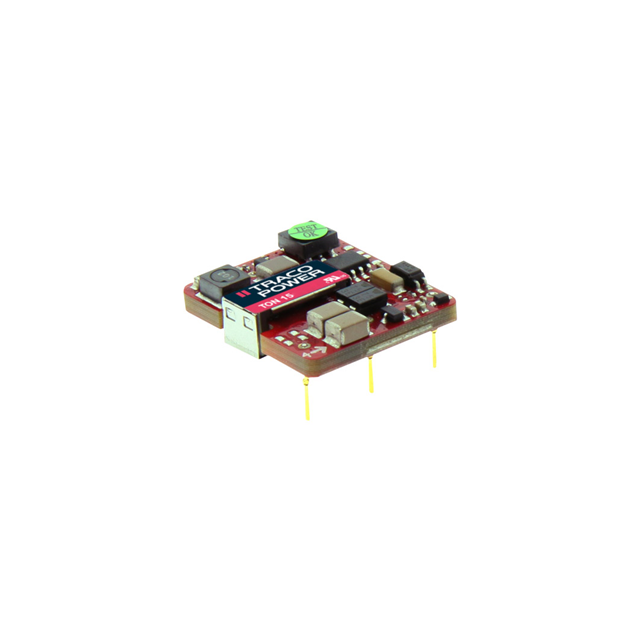

TON 15-2410

Traco Power

DC DC CONVERTER 3.3V 12W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TON 15-2410

Traco Power

DC DC CONVERTER 3.3V 12W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TON 15-2410

Applications	ITE (Commercial)
Current - Output (Max) [Max]	3.5 A
Efficiency	86 %
Features	OVP, UVLO, OCP, Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	12 W
Size / Dimension [x]	27.9 mm
Size / Dimension [x]	1.1 "
Size / Dimension [y]	0.94 in
Size / Dimension [y]	23.9 mm
Size / Dimension [z]	8.5 mm
Size / Dimension [z]	0.33 in
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	3.3 V

TON 15 Series

Part	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Features	Mounting Type	Power (Watts)	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Type	Voltage - Input (Max) [Max]	Package / Case	Voltage - Isolation	Number of Outputs
Traco Power TON 15-2413WI	ITE (Commercial)	85 °C	-40 °C	86 %	1 A	9 V	OCP OVP Remote On/Off SCP	Through Hole	15 W	15 V	8.5 mm	27.9 mm	0.33 in	1.1 "	0.94 in	23.9 mm	Isolated Module	36 V	6-DIP Module	2250 VDC	1
Traco Power TON 15-4811	ITE (Commercial)	85 °C	-40 °C	87 %	3 A	36 V	OCP OVP Remote On/Off SCP UVLO	Through Hole	15 W	5 V	8.5 mm	27.9 mm	0.33 in	1.1 "	0.94 in	23.9 mm	Isolated Module	75 V	6-DIP Module	2250 VDC	1
Traco Power TON 15-2410	ITE (Commercial)	85 °C	-40 °C	86 %	3.5 A	18 V	OCP OVP Remote On/Off SCP UVLO	Through Hole	12 W	3.3 V	8.5 mm	27.9 mm	0.33 in	1.1 "	0.94 in	23.9 mm	Isolated Module	36 V	6-DIP Module	2250 VDC	1
Traco Power TON 15-4811SM	ITE (Commercial)	85 °C	-40 °C	87 %	3 A	36 V	OCP OVP Remote On/Off SCP UVLO	Surface Mount	15 W	5 V	8.5 mm	27.9 mm	0.33 in	1.1 "	0.94 in	23.9 mm	Isolated Module	75 V	6-SMD Module	2250 VDC	1
Traco Power TON 15-2413SM	ITE (Commercial)	85 °C	-40 °C	88 %	1 A	18 V	OCP OVP Remote On/Off SCP UVLO	Surface Mount	15 W	15 V	8.5 mm	27.9 mm	0.33 in	1.1 "	0.94 in	23.9 mm	Isolated Module	36 V	6-SMD Module	2250 VDC	1
Traco Power TON 15-4810SM	ITE (Commercial)	85 °C	-40 °C	85 %	3.5 A	36 V	OCP OVP Remote On/Off SCP UVLO	Surface Mount	12 W	3.3 V	8.5 mm	27.9 mm	0.33 in	1.1 "	0.94 in	23.9 mm	Isolated Module	75 V	6-SMD Module	2250 VDC	1
Traco Power TON 15-4812WISM	ITE (Commercial)	85 °C	-40 °C	86 %	1.3 A	18 V	OCP OVP Remote On/Off SCP	Surface Mount	16 W	12 V	8.5 mm	27.9 mm	0.33 in	1.1 "	0.94 in	23.9 mm	Isolated Module	75 V	6-SMD Module	2250 VDC	1
Traco Power TON 15-2411WI	ITE (Commercial)	85 °C	-40 °C	87 %	3 A	9 V	OCP OVP Remote On/Off SCP	Through Hole	15 W	5 V	8.5 mm	27.9 mm	0.33 in	1.1 "	0.94 in	23.9 mm	Isolated Module	36 V	6-DIP Module	2250 VDC	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	10	$ 47.04
		30	$ 45.55
		50	$ 43.31
		100	$ 40.32
		250	$ 39.72
		500	$ 36.96

Description

General part information

TON 15 Series

Isolated Module DC DC Converter 1 Output 3.3V 3.5A 18V - 36V Input
