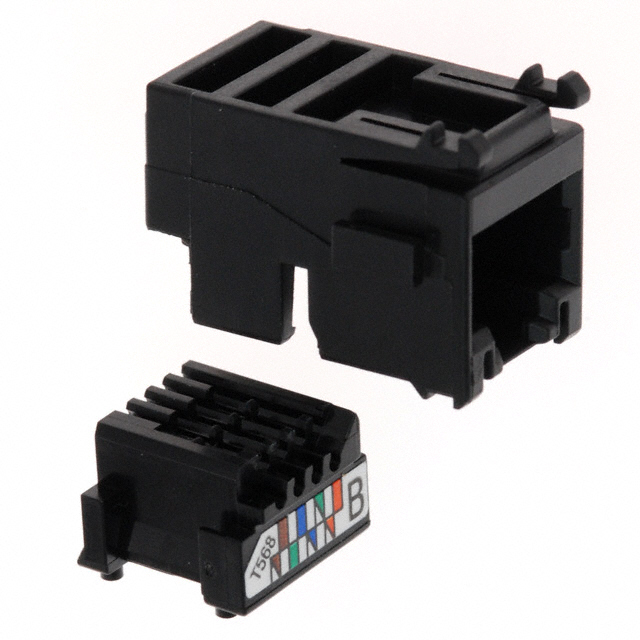

SS-82000-002

Obsolete

BEL MAGNETIC SOLUTIONS

CONN MOD JACK 8P8C UNSHIELDED

Search across all available documentation for this part.

Obsolete

BEL MAGNETIC SOLUTIONS

CONN MOD JACK 8P8C UNSHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	SS-82000-002

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Copper Alloy
Features	Latch Lock
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Straight
Ratings	Cat5e
Shielding	Unshielded
Tab Direction	User Selectable
Termination	IDC

Part	Contact Material	Tab Direction	Number of Rows	Termination	Housing Material	Shielding	Number of Positions/Contacts	Contact Finish Thickness	Contact Finish Thickness	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	LED Color	Connector Type	Contact Finish	Features	Ratings
BEL MAGNETIC SOLUTIONS SS-82000-002	Copper Alloy	User Selectable	1	IDC	Thermoplastic	Unshielded	8p8c (RJ45 Ethernet)	50 µin	1.27 µm	1	85 °C	-40 °C	Straight	Does Not Contain LED	Jack	Gold	Latch Lock	Cat5e

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) Straight Unshielded Cat5e

Technical documentation and resources

No documents available
