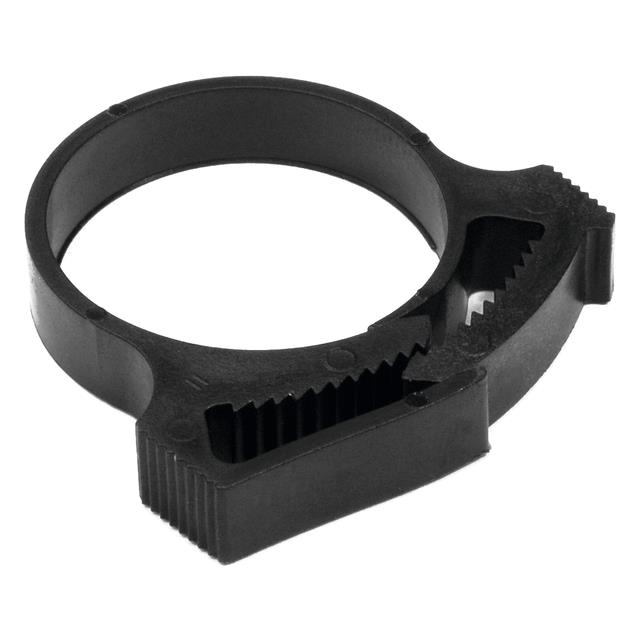

SNP7GHS0C2

Active

HELLERMANNTYTON

CBL CLIP HOSE BLACK

Search across all available documentation for this part.

Active

HELLERMANNTYTON

CBL CLIP HOSE BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	SNP7GHS0C2

Color	Black
Features	Impact Resistant, Heat Stabilized
Length [Max]	0.981 in
Length [Max]	24.92 mm
Length [Min]	16.59 mm
Length [Min]	0.653 in
Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 HB
Material Thickness	0.07 in
Material Thickness	1.78 mm
Opening Size [Max] [custom]	14.17 mm
Opening Size [Max] [custom]	0.558 in
Opening Size [Min] [custom]	0.463 in
Opening Size [Min] [custom]	11.76 mm
Type	Clamp, Hose
Type Attributes	Push-Fit
Width [x]	5.97 mm
Width [x]	0.235 in

Part	Type	Color	Material	Width [x]	Width [x]	Length [Max]	Length [Max]	Length [Min]	Length [Min]	Opening Size [Max] [custom]	Opening Size [Max] [custom]	Opening Size [Min] [custom]	Opening Size [Min] [custom]	Material Thickness	Material Thickness	Features	Type Attributes	Material Flammability Rating
HELLERMANNTYTON SNP7GHS0C2	Clamp Hose	Black	Polyamide (PA66) Nylon 6/6 Glass Filled	5.97 mm	0.235 in	0.981 in	24.92 mm	16.59 mm	0.653 in	14.17 mm	0.558 in	0.463 in	11.76 mm	0.07 in	1.78 mm	Heat Stabilized Impact Resistant	Push-Fit	UL94 HB
HELLERMANNTYTON SNP7GHS0M4	Clamp Hose	Black	Polyamide (PA66) Nylon 6/6 Glass Filled	5.97 mm	0.235 in	0.981 in	24.92 mm	16.59 mm	0.653 in	14.17 mm	0.558 in	0.463 in	11.76 mm	0.07 in	1.78 mm	Heat Stabilized Impact Resistant	Push-Fit	UL94 HB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 0.67
