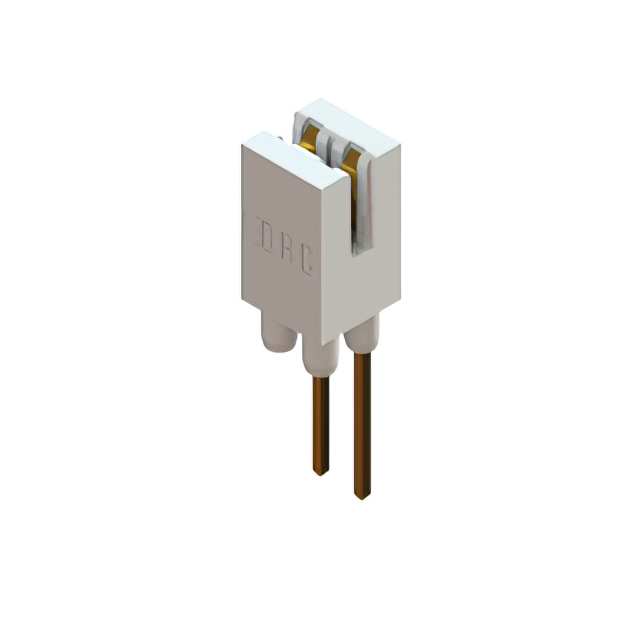

243-002-542-101
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 2 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, WIRE WRAP TERMINAL,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
243-002-542-101
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 2 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, WIRE WRAP TERMINAL,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 243-002-542-101 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | White |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
| Read Out | Single |
| Termination | Solder Eyelet(s) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 9.10 | |
Description
General part information
243-002 Series
2 Position Female Connector Non Specified - Single Edge Gold 0.200" (5.08mm) White
