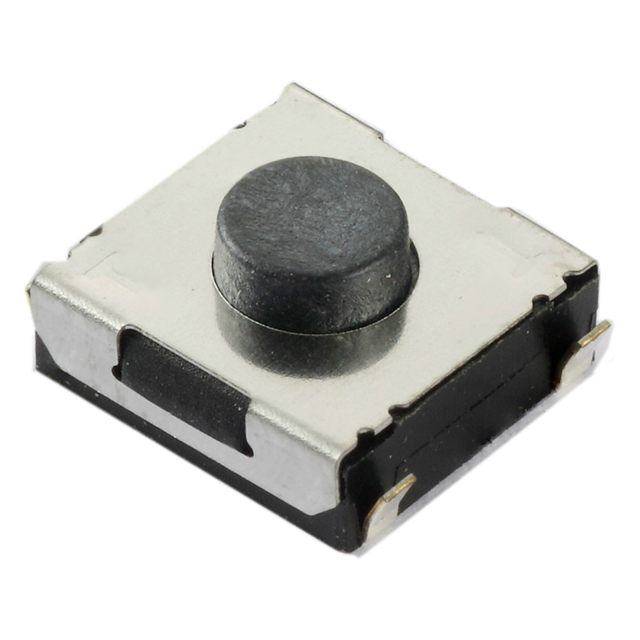

222DJVCAR

Active

Tusonix a Subsidiary of CTS Electronic Components

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

Tusonix a Subsidiary of CTS Electronic Components

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	222DJVCAR

Actuator Height off PCB, Vertical	3.5 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Features	Tactile Feedback
Illumination	Non-Illuminated
Mechanical Life	1000000 Cycles
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	6.2 mm
Outline [y]	6.2 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	J Lead

Part	Actuator Orientation	Contact Rating @ Voltage	Mounting Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Features	Outline [y]	Outline [x]	Circuit	Actuator Type	Switch Travel	Mechanical Life	Actuator Height off PCB, Vertical	Illumination	Operating Force	Actuator Height off PCB, Vertical [z]
Tusonix a Subsidiary of CTS Electronic Components 222DJVCAR	Top Actuated	0.05 A 12 VDC	Surface Mount	J Lead	85 °C	-40 °C	Off-Mom	Tactile Feedback	6.2 mm	6.2 mm	SPST-NO	Standard	0.25 mm	1000000 Cycles	3.5 mm	Non-Illuminated
Tusonix a Subsidiary of CTS Electronic Components 222DJVCCR	Top Actuated	0.05 A 12 VDC	Surface Mount	J Lead	85 °C	-40 °C	Off-Mom	Tactile Feedback	6.2 mm	6.2 mm	SPST-NO	Standard	0.25 mm	500000 Cycles	3.5 mm	Non-Illuminated	260 gf
Tusonix a Subsidiary of CTS Electronic Components 222DJVBCR	Top Actuated	0.05 A 12 VDC	Surface Mount	J Lead	85 °C	-40 °C	Off-Mom	Tactile Feedback	6.2 mm	6.2 mm	SPST-NO	Standard	0.25 mm	500000 Cycles		Non-Illuminated	260 gf	3.1 mm
Tusonix a Subsidiary of CTS Electronic Components 222DJVCBR	Top Actuated	0.05 A 12 VDC	Surface Mount	J Lead	85 °C	-40 °C	Off-Mom	Tactile Feedback	6.2 mm	6.2 mm	SPST-NO	Standard	0.25 mm	200000 Cycles	3.5 mm	Non-Illuminated	360 gf
Tusonix a Subsidiary of CTS Electronic Components 222DJVBCRG	Top Actuated	0.05 A 12 VDC	Surface Mount	J Lead	85 °C	-40 °C	Off-Mom	Grounding Pin Tactile Feedback	6.2 mm	6.2 mm	SPST-NO	Standard	0.25 mm	500000 Cycles		Non-Illuminated	260 gf	3.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10000	$ 0.16

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
