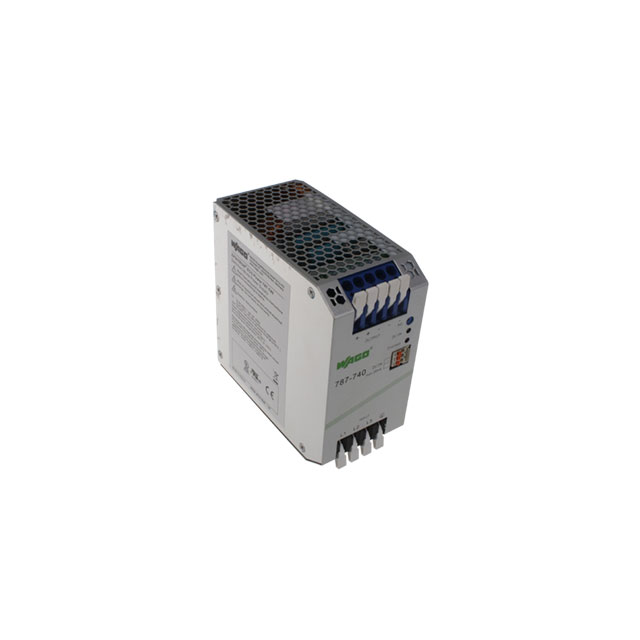

787-740

Active

WAGO Corporation

AC/DC DIN RAIL SUPPLY 24V 240W

Search across all available documentation for this part.

Active

WAGO Corporation

AC/DC DIN RAIL SUPPLY 24V 240W

Technical Specifications

Parameters and characteristics for this part

Specification	787-740

AC Voltage - Input [Max]	575 VAC
AC Voltage - Input [Min]	360 VAC
Applications	Industrial, ITE (Commercial)
Approval Agency	UL, cURus
Current - Output (Max) [Max]	10 A
DC Voltage - Input (Min) [Min]	500 V
Efficiency	89 %
Features	Universal Input, IP20, Adjustable Output, PFC
Input Type	AC or DC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	240 W
Size / Dimension [x]	130 mm
Size / Dimension [x]	5.12 "
Size / Dimension [y]	2.56 "
Size / Dimension [y]	65 mm
Size / Dimension [z]	5.12 "
Size / Dimension [z]	130 mm
Standard Number	60950-1, UL 508
Voltage - Isolation	4.242 kV
Voltage - Output 1	24 V

Part	Number of Outputs	Input Type	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Approval Agency	Efficiency	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	DC Voltage - Input (Min) [Min]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage - Output 1	Applications	Standard Number	Voltage - Isolation	Current - Output (Max) [Max]
WAGO Corporation 787-740	1	AC or DC	575 VAC	360 VAC	cURus UL	89 %	5.12 "	130 mm	2.56 "	130 mm	65 mm	5.12 "	500 V	240 W	-25 °C	70 °C	Adjustable Output IP20 PFC Universal Input	24 V	Industrial ITE (Commercial)	60950-1 UL 508	4.242 kV	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 24V 240W
