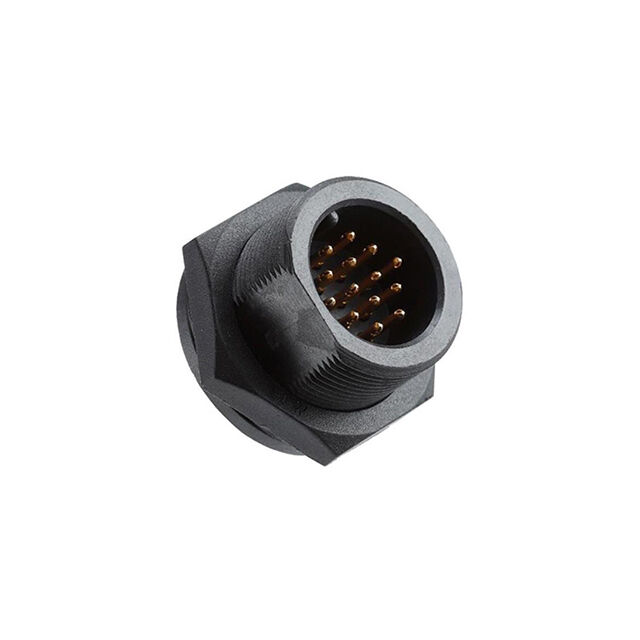

ACD-12PMMS-SC7001

Active

Amphenol LTW

MIDDLE STAMPING PIN

Search across all available documentation for this part.

Active

Amphenol LTW

MIDDLE STAMPING PIN

Technical Specifications

Parameters and characteristics for this part

Specification	ACD-12PMMS-SC7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	12
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	C
Shielding	Unshielded
Voltage Rating	250 VAC

Part	Insert Material	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Orientation	Ingress Protection	Material Flammability Rating	Shielding	Color	Current Rating (Amps)	Contact Finish - Mating	Primary Material	Voltage Rating	Mounting Feature	Shell Material	Number of Positions	Contact Material
Amphenol LTW ACD-12PMMS-SC7001	Polyamide (PA) Nylon Glass Filled	C	-40 °C	105 ░C	Male Pins Receptacle	Keyed	IP67 - Dust Tight Waterproof	UL94 V-0	Unshielded	Black	5 A	Gold	Plastic	250 VAC	Bulkhead - Front Side Nut	Glass Filled Nylon Polyamide (PA)	12	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 6.82

General part information

12 Position Circular Connector Receptacle, Male Pins Solder Cup
