09302240803

Active

HARTING Technology Group

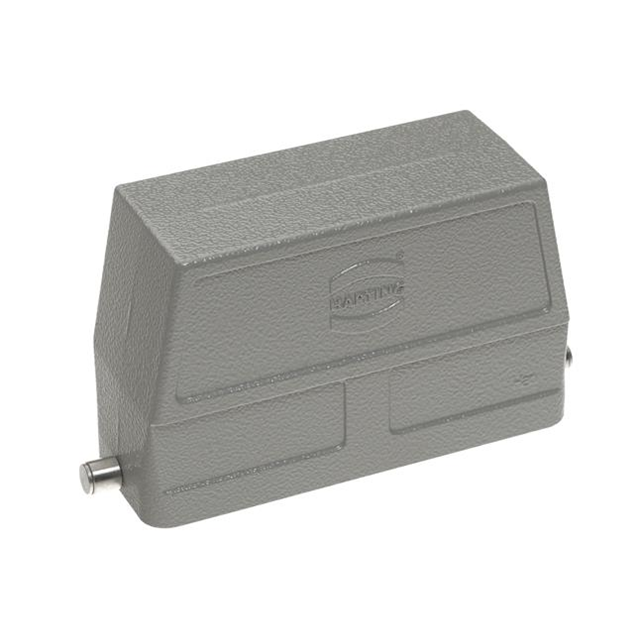

24B HOOD NO ENTRY, SINGLE LEVER, HIGH CONSTRUCTION - HIGH MATING CYCLE VERSION

Search across all available documentation for this part.

Active

HARTING Technology Group

24B HOOD NO ENTRY, SINGLE LEVER, HIGH CONSTRUCTION - HIGH MATING CYCLE VERSION

Technical Specifications

Parameters and characteristics for this part

Specification	09302240803

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Size / Dimension [x]	120 mm
Size / Dimension [x]	4.724 "
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	76 mm
Size / Dimension [z]	2.992 in

Part	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Housing Color	Ingress Protection	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size	Housing Material	Lock Location
HARTING Technology Group 09302240803	Powder Coated	125 °C	-40 °C	Hood	Gray	IP65 - Dust Tight Water Resistant	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	24 B	Aluminum Die Cast	Locking Clip (1) on Base Bottom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector 24B IP65 - Dust Tight, Water Resistant
