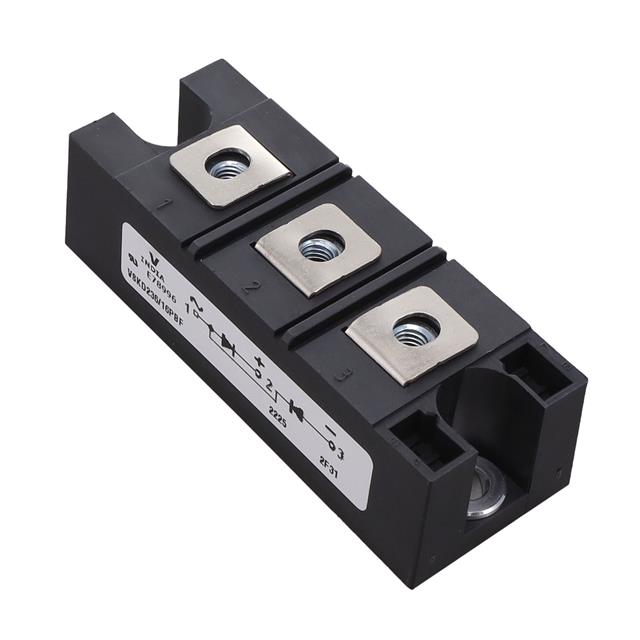

VS-VSKD236/12PBF
ActiveVishay General Semiconductor - Diodes Division
DIODE MOD GP 1200V 115A MAGNAPAK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VS-VSKD236/12PBF
ActiveVishay General Semiconductor - Diodes Division
DIODE MOD GP 1200V 115A MAGNAPAK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VS-VSKD236/12PBF |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 115 A |
| Current - Reverse Leakage @ Vr | 20 mA |
| Diode Configuration | 1 Pair Common Cathode |
| Mounting Type | Chassis Mount |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -40 °C |
| Package / Case | 3-MAGN-A-PAK™ |
| Speed | Standard Recovery >500ns |
| Speed | 200 mA |
| Supplier Device Package | MAGN-A-PAK® |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 1.2 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
VSKD236 Series
Diode Array 1 Pair Common Cathode 1200 V 115A Chassis Mount 3-MAGN-A-PAK™
