RL6365-F

Active

Hammond Manufacturing

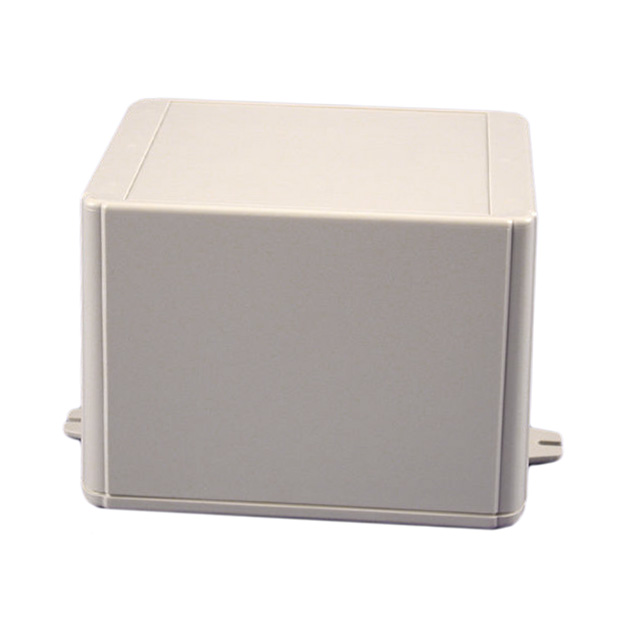

BOX PLASTIC GRAY 4.92"L X 3.94"W

Search across all available documentation for this part.

Active

Hammond Manufacturing

BOX PLASTIC GRAY 4.92"L X 3.94"W

Technical Specifications

Parameters and characteristics for this part

Specification	RL6365-F

Area (L x W)	125 cm˛
Area (L x W)	19.3 in˛
Color	Gray
Container Type	Box
Design	Cover Included
Features	Mounting Flange, PCB Supports
Height [z]	90 mm
Height [z]	3.543 in
Material	ABS
Ratings	IP54
Size / Dimension [x]	124.99 mm
Size / Dimension [x]	4.921 in
Size / Dimension [y]	100 mm
Size / Dimension [y]	3.937 in
Thickness [z]	2.79 mm
Thickness [z]	0.11 in
Weight	453.59 g
Weight	1 lbs

Part	Color	Container Type	Design	Thickness [z]	Thickness [z]	Ratings	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	Features
Hammond Manufacturing RL6365-F	Gray	Box	Cover Included	2.79 mm	0.11 in	IP54	125 cm˛	19.3 in˛	90 mm	3.543 in	ABS	124.99 mm	100 mm	3.937 in	4.921 in	453.59 g	1 lbs	Mounting Flange PCB Supports

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box ABS Gray Cover Included 4.921" L x 3.937" W (124.99mm x 100.00mm) X 3.543" (90.00mm)

Technical documentation and resources

No documents available
