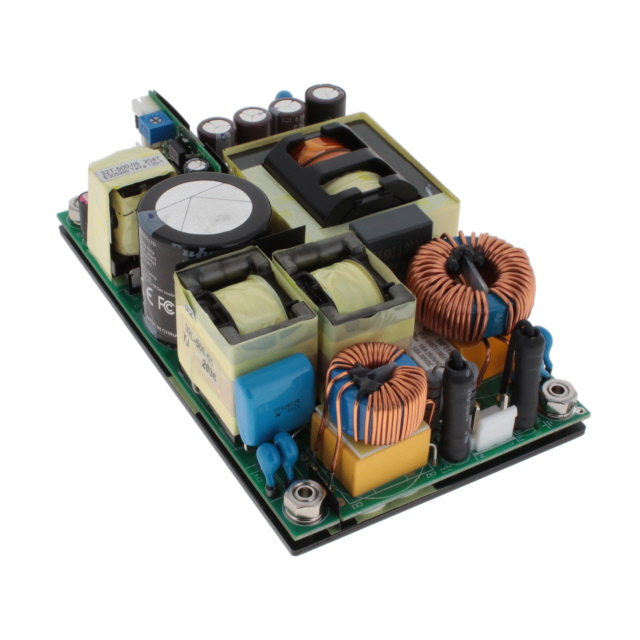

CFM500M480

Active

Cincon Electronics Co. LTD

AC/DC CONVERTER 48V 320W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CFM500M480

Active

Cincon Electronics Co. LTD

AC/DC CONVERTER 48V 320W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CFM500M480

Applications	Household Appliances, Medical
Current - Output 1	6.67 A
Efficiency	94 %
Features	Standby Output, Universal Input, PFC, Adjustable Output, Remote On/Off, Remote Sense
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 °C
Power (Watts)	500 W, 320 W
Size / Dimension [x]	127 mm
Size / Dimension [x]	127 mm
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	39.1 mm
Size / Dimension [z]	1.54 "
Standard Number	60335-1, 60601-1
Type	Open Frame
Voltage - Isolation	4000 V
Voltage - Output 1	48 V

CFM500 Series

Part	Voltage - Output 1	Voltage - Isolation	Standard Number	Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Applications	Number of Outputs	Current - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Mounting Type	Power (Watts)	Features	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Approval Agency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]
Cincon Electronics Co. LTD CFM500M120C	12 V	4000 V	60335-1 60601-1	Enclosed	42.5 mm	3.43 "	136 mm	87 mm	5.35 "	1.67 in	Household Appliances Medical	1	20.83 A	85 °C	-30 °C	91.5 %	Chassis Mount	250 W 500 W	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input
Cincon Electronics Co. LTD CFM500S120C	12 V	4000 V	60335-1 62368-1	Enclosed	42.5 mm	3.43 "	136 mm	87 mm	5.35 "	1.67 in	Household Appliances ITE (Commercial)	1	27.5 A	85 °C	-40 °C	91.5 %	Chassis Mount	330 W	Adjustable Output Baseplate PFC Remote On/Off Standby Output Universal Input	264 VAC	80 VAC	500 W	CE cURus D-Mark FCC
Cincon Electronics Co. LTD CFM500S180C	18 V	4000 V	60335-1 62368-1	Enclosed	42.5 mm	3.43 "	136 mm	87 mm	5.35 "	1.67 in	Household Appliances ITE (Commercial)	1	18.33 A	85 °C	-40 °C	92.5 %	Chassis Mount	330 W	Adjustable Output Baseplate PFC Remote On/Off Standby Output Universal Input	264 VAC	80 VAC	500 W	CE cURus D-Mark FCC
Cincon Electronics Co. LTD CFM500M180C	18 V	4000 V	60335-1 60601-1	Enclosed	42.5 mm	3.43 "	136 mm	87 mm	5.35 "	1.67 in	Household Appliances Medical	1		85 °C	-30 °C		Chassis Mount		Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input
Cincon Electronics Co. LTD CFM500S240C	24 V	4000 V	60335-1 62368-1	Enclosed	42.5 mm	3.43 "	136 mm	87 mm	5.35 "	1.67 in	Household Appliances ITE (Commercial)	1	17.08 A	85 °C	-40 °C	93 %	Chassis Mount	410 W 500 W	Adjustable Output Baseplate PFC Remote On/Off Standby Output Universal Input	264 VAC	80 VAC		CE cURus D-Mark FCC
Cincon Electronics Co. LTD CFM500M180	18 V	4000 V	60335-1 60601-1	Open Frame	1.54 "		127 mm	3 "			Household Appliances Medical	1		85 °C	-30 °C		Chassis Mount		Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input					39.1 mm	76.2 mm	127 mm
Cincon Electronics Co. LTD CFM500M240	24 V	4000 V	60335-1 60601-1	Open Frame	1.54 "		127 mm	3 "			Household Appliances Medical	1	13.33 A	85 °C	-30 °C	93 %	Chassis Mount	320 W 500 W	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input					39.1 mm	76.2 mm	127 mm
Cincon Electronics Co. LTD CFM500S240	24 V	4000 V	60335-1 62368-1	Open Frame	1.54 "		127 mm	3 "			Household Appliances ITE (Commercial)	1	15.83 A	85 °C	-40 °C	93 %	Chassis Mount	380 W 500 W	Adjustable Output Baseplate PFC Remote On/Off Standby Output Universal Input	264 VAC	80 VAC		CE cURus D-Mark FCC	39.1 mm	76.2 mm	127 mm
Cincon Electronics Co. LTD CFM500M480C	48 V	4000 V	60335-1 60601-1	Enclosed	42.5 mm	3.43 "	136 mm	87 mm	5.35 "	1.67 in	Household Appliances Medical	1	6.67 A	85 °C	-30 °C	94 %	Chassis Mount	320 W 500 W	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input
Cincon Electronics Co. LTD CFM500M480	48 V	4000 V	60335-1 60601-1	Open Frame	1.54 "		127 mm	3 "			Household Appliances Medical	1	6.67 A	85 °C	-30 °C	94 %	Chassis Mount	320 W 500 W	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input					39.1 mm	76.2 mm	127 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 143.18
		5	$ 138.78
		10	$ 134.37
		25	$ 129.97
		50	$ 125.56

Description

General part information

CFM500 Series

Open Frame AC DC Converters 1 Output 48V 85 ~ 264 VAC Input

Documents

Technical documentation and resources
