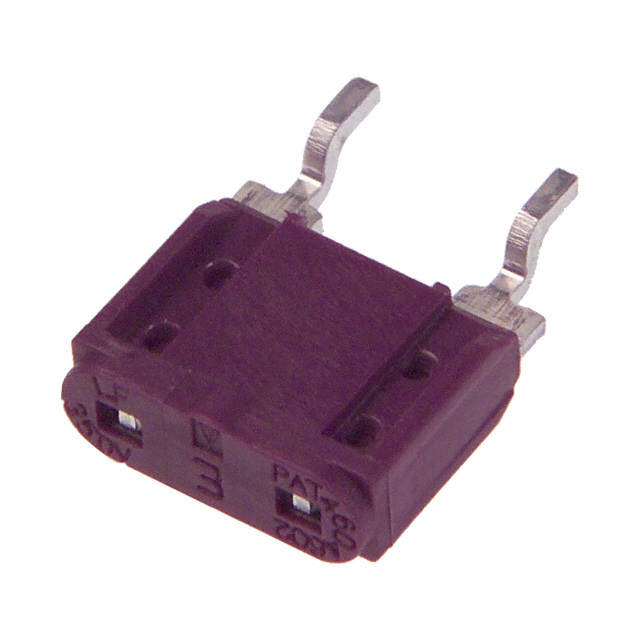

0446003.ZRP
ActiveLittelfuse/Commercial Vehicle Products
FUSE, SURFACE MOUNT, 3 A, FAST ACTING, 125 VAC, 125 VDC, 10.92MM X 8.76MM, 446 SERIES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0446003.ZRP
ActiveLittelfuse/Commercial Vehicle Products
FUSE, SURFACE MOUNT, 3 A, FAST ACTING, 125 VAC, 125 VDC, 10.92MM X 8.76MM, 446 SERIES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0446003.ZRP |
|---|---|
| Approval Agency | CSA, UL |
| Breaking Capacity @ Rated Voltage | 100 A, 50 A |
| Current Rating (Amps) | 3 A |
| DC Cold Resistance | 0.034 Ohms |
| Fuse Type | Board Mount |
| Melting I²t | 9.4 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 2-SMD, Gull Wing |
| Response Time | Fast Blow |
| Size / Dimension [x] | 10.92 mm |
| Size / Dimension [x] | 0.43 " |
| Size / Dimension [y] | 8.76 mm |
| Size / Dimension [y] | 0.345 in |
| Size / Dimension [z] | 3.81 mm |
| Size / Dimension [z] | 0.15 " |
| Voltage Rating - AC | 350 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
0446003 Series
350V EBF FA SM PB FREE 3A VIOLET COLOR
