031-80103

Amphenol RF

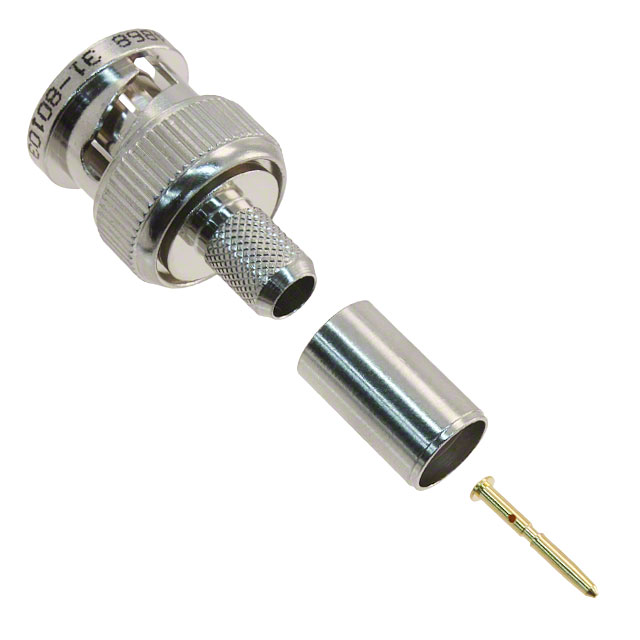

CONN BNC PLUG STR 75 OHM CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

031-80103

Amphenol RF

CONN BNC PLUG STR 75 OHM CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	031-80103

Body Finish	Nickel
Body Material	Phosphor Bronze
Cable Group	140, 8263, 59B, 8279, 210, Belden 8241, RG-59, 62, 9209
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	75 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

031-80 Series

Part	Impedance	Connector Style	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Cable Group	Includes	Voltage Rating	Contact Termination	Fastening Type	Dielectric Material	Housing Color	Body Material	Number of Ports	Center Contact Plating	Mating Cycles	Body Finish	Connector Type	Shield Termination	Insertion Loss	Mounting Type	Includes
Amphenol RF 031-80108	75 Ohms	BNC	4 GHz	-65 ░C	165 °C	Brass	Belden 8281	1 Connector 1 Contact 1 Ferrule	500 V	Crimp	Bayonet Lock	Polytetrafluoroethylene (PTFE)	Silver	Phosphor Bronze	1	Gold	500	Nickel	Male Pin Plug	Crimp	0.2 dB	Free Hanging (In-Line)
Amphenol RF 031-80101	75 Ohms	BNC	4 GHz	-65 ░C	165 °C	Brass	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	1 Connector 1 Contact 1 Ferrule	500 V	Crimp	Bayonet Lock	Polytetrafluoroethylene (PTFE)	Silver	Phosphor Bronze	1	Gold	500	Nickel	Male Pin Plug	Crimp	0.2 dB	Free Hanging (In-Line)
Amphenol RF 031-80103	75 Ohms	BNC	4 GHz	-65 ░C	165 °C	Brass	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	1 Connector 1 Contact 1 Ferrule	500 V	Crimp	Bayonet Lock	Polytetrafluoroethylene (PTFE)	Silver	Phosphor Bronze	1	Gold	500	Nickel	Male Pin Plug	Crimp	0.2 dB	Free Hanging (In-Line)
Amphenol RF 031-80107	75 Ohms	BNC	4 GHz	-65 ░C	165 °C	Brass	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179		500 V	Crimp	Bayonet Lock	Polytetrafluoroethylene (PTFE)	Silver	Phosphor Bronze	1	Gold	500	Nickel	Male Pin Plug	Crimp	0.2 dB	Free Hanging (In-Line)	1 pcs 1 pcs 1 pcs 1 pcs 1 pcs
Amphenol RF 031-80104	75 Ohms	BNC	4 GHz	-65 ░C	165 °C	Brass	734A AT&T 734 Belden 1505A	1 Connector 1 Contact 1 Ferrule	500 V	Crimp	Bayonet Lock	Polytetrafluoroethylene (PTFE)	Silver	Phosphor Bronze	1	Gold	500	Nickel	Male Pin Plug	Crimp	0.2 dB	Free Hanging (In-Line)
Amphenol RF 031-80901	75 Ohms	BNC	3 GHz	-40 °C	85 °C	Brass	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	1 Connector 1 Contact 1 Ferrule	500 V	Crimp	Bayonet Lock	Polytetrafluoroethylene (PTFE)	Silver	Zinc Die Cast	1	Gold	500	Nickel	Male Pin Plug	Crimp	0.2 dB	Free Hanging (In-Line) Right Angle
Amphenol RF 031-80904	75 Ohms	BNC	3 GHz	-40 °C	85 °C	Brass	734A AT&T 734 Belden 1505A	1 Connector 1 Contact 1 Ferrule	500 V	Crimp	Bayonet Lock	Polytetrafluoroethylene (PTFE)	Silver	Zinc Alloy	1	Gold	500	Nickel	Male Pin Plug	Crimp	0.2 dB	Free Hanging (In-Line) Right Angle
Amphenol RF 031-80109	75 Ohms	BNC	4 GHz	-65 ░C	165 °C	Brass	1694A 9248 Belden 1694	1 Connector 1 Contact 1 Ferrule	500 V	Crimp	Bayonet Lock	Polytetrafluoroethylene (PTFE)	Silver	Phosphor Bronze	1	Gold	500	Nickel	Male Pin Plug	Crimp	0.2 dB	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 6.76

Description

General part information

031-80 Series

BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
