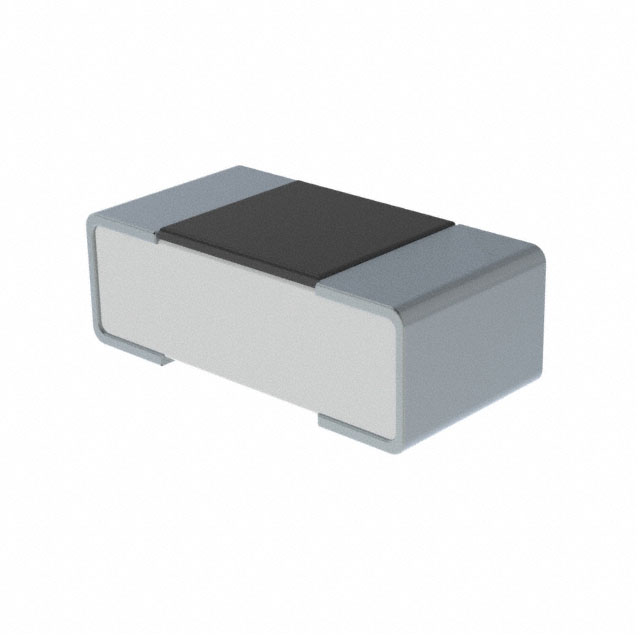

RN73H1ETTP3791C50

Active

KOA Speer Electronics, Inc.

RES 3.79K OHM 0.25% 1/16W 0402

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RN73H1ETTP3791C50

Active

KOA Speer Electronics, Inc.

RES 3.79K OHM 0.25% 1/16W 0402

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RN73H1ETTP3791C50

Composition	Metal Film
Features	Automotive AEC-Q200, Moisture Resistant
Height - Seated (Max) [Max]	0.016 in
Height - Seated (Max) [Max]	0.4 mm
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	0402 (1005 Metric)
Power (Watts)	0.0625 W
Power (Watts)	0.063 W
Ratings	AEC-Q200
Resistance	3.79 kOhms
Size / Dimension [x]	1 mm
Size / Dimension [x]	0.039 in
Size / Dimension [y]	0.02 in
Size / Dimension [y]	0.5 mm
Supplier Device Package	0402
Temperature Coefficient	50 ppm/°C
Tolerance	0.25 %

RN73H1E Series

...

Part	Supplier Device Package	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Resistance	Composition	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Number of Terminations	Temperature Coefficient	Power (Watts)	Power (Watts)
KOA Speer Electronics, Inc. RN73H1ETTP2213B25	0402	Automotive AEC-Q200 Moisture Resistant	1 mm	0.02 in	0.5 mm	0.039 in	221 kOhms	Metal Film	0.1 %	155 °C	-55 °C	AEC-Q200	0402 (1005 Metric)	0.016 in	0.4 mm	2	25 ppm/°C	0.0625 W	0.063 W
KOA Speer Electronics, Inc. RN73H1ETTP89R8B50	0402	Automotive AEC-Q200 Moisture Resistant	1 mm	0.02 in	0.5 mm	0.039 in	89.8 Ohms	Metal Film	0.1 %	155 °C	-55 °C	AEC-Q200	0402 (1005 Metric)	0.016 in	0.4 mm	2	50 ppm/°C	0.0625 W	0.063 W
KOA Speer Electronics, Inc. RN73H1ETTP2981D10	0402	Automotive AEC-Q200 Moisture Resistant	1 mm	0.02 in	0.5 mm	0.039 in	2.98 kOhms	Metal Film		155 °C	-55 °C	AEC-Q200	0402 (1005 Metric)	0.016 in	0.4 mm	2	10 ppm/°C	0.1 W	0.1 W
KOA Speer Electronics, Inc. RN73H1ETTP83R5B50	0402	Automotive AEC-Q200 Moisture Resistant	1 mm	0.02 in	0.5 mm	0.039 in	83.5 Ohms	Metal Film	0.1 %	155 °C	-55 °C	AEC-Q200	0402 (1005 Metric)	0.016 in	0.4 mm	2	50 ppm/°C	0.0625 W	0.063 W
KOA Speer Electronics, Inc. RN73H1ETTP8661B25	0402	Automotive AEC-Q200 Moisture Resistant	1 mm	0.02 in	0.5 mm	0.039 in	8.66 kOhms	Metal Film	0.1 %	155 °C	-55 °C	AEC-Q200	0402 (1005 Metric)	0.016 in	0.4 mm	2	25 ppm/°C	0.0625 W	0.063 W
KOA Speer Electronics, Inc. RN73H1ETTP1493F50	0402	Automotive AEC-Q200 Moisture Resistant	1 mm	0.02 in	0.5 mm	0.039 in	149 kOhms	Metal Film	1 %	155 °C	-55 °C	AEC-Q200	0402 (1005 Metric)	0.016 in	0.4 mm	2	50 ppm/°C	0.0625 W	0.063 W
KOA Speer Electronics, Inc. RN73H1ETTP3791C50	0402	Automotive AEC-Q200 Moisture Resistant	1 mm	0.02 in	0.5 mm	0.039 in	3.79 kOhms	Metal Film	0.25 %	155 °C	-55 °C	AEC-Q200	0402 (1005 Metric)	0.016 in	0.4 mm	2	50 ppm/°C	0.0625 W	0.063 W
KOA Speer Electronics, Inc. RN73H1ETTP1000F10	0402	Automotive AEC-Q200 Moisture Resistant	1 mm	0.02 in	0.5 mm	0.039 in	100 Ohms	Metal Film	1 %	155 °C	-55 °C	AEC-Q200	0402 (1005 Metric)	0.016 in	0.4 mm	2	10 ppm/°C	0.0625 W	0.063 W
KOA Speer Electronics, Inc. RN73H1ETTP1331F25	0402	Automotive AEC-Q200 Moisture Resistant	1 mm	0.02 in	0.5 mm	0.039 in	1.33 kOhms	Metal Film	1 %	155 °C	-55 °C	AEC-Q200	0402 (1005 Metric)	0.016 in	0.4 mm	2	25 ppm/°C	0.1 W	0.1 W
KOA Speer Electronics, Inc. RN73H1ETTP2913C50	0402	Automotive AEC-Q200 Moisture Resistant	1 mm	0.02 in	0.5 mm	0.039 in	291 kOhms	Metal Film	0.25 %	155 °C	-55 °C	AEC-Q200	0402 (1005 Metric)	0.016 in	0.4 mm	2	50 ppm/°C	0.0625 W	0.063 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1000	$ 0.12
	Digi-Reel®	1000	$ 0.12
	Tape & Reel (TR)	10000	$ 0.10

Description

General part information

RN73H1E Series

3.79 kOhms ±0.25% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Automotive AEC-Q200, Moisture Resistant Metal Film
