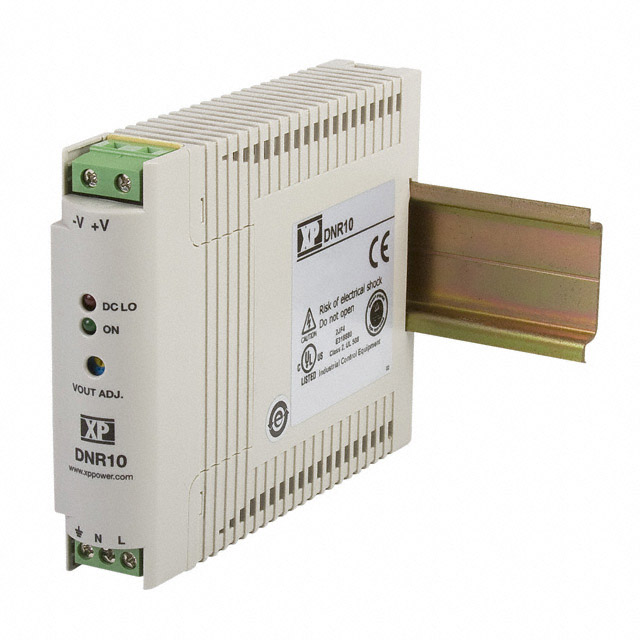

DNR10US24-S

Active

XP POWER

AC/DC DIN RAIL SUPPLY 24V 10W

Search across all available documentation for this part.

Active

XP POWER

AC/DC DIN RAIL SUPPLY 24V 10W

Technical Specifications

Parameters and characteristics for this part

Specification	DNR10US24-S

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	90 VAC
Applications	ITE (Commercial), Industrial, Hazardous Locations
Approval Agency	CE
Current - Output (Max) [Max]	420 mA
DC Voltage - Input (Max) [Max]	375 V
DC Voltage - Input (Min) [Min]	120 V
Efficiency	76 %
Features	Adjustable Output, Universal Input
Input Type	AC or DC
Minimum Load Required	False
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	10 W
Size / Dimension [x]	115 mm
Size / Dimension [x]	4.53 "
Size / Dimension [y]	22.5 mm
Size / Dimension [y]	0.89 in
Size / Dimension [z]	3.48 "
Size / Dimension [z]	88.5 mm
Standard Number	62368-1
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Efficiency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	DC Voltage - Input (Min) [Min]	Number of Outputs	Power (Watts)	Input Type	Standard Number	Features	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Applications	Approval Agency	Voltage - Isolation	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	DC Voltage - Input (Max) [Max]	Voltage - Output 1
XP POWER DNR10US15-S	76 %	3.48 "	115 mm	22.5 mm	4.53 "	0.89 in	88.5 mm	120 V	1	10 W	AC or DC	62368-1	Adjustable Output Universal Input	90 VAC	264 VAC	Hazardous Locations Industrial ITE (Commercial)	CE	3000 V	670 mA	-20 °C	70 °C	375 V	15 V
XP POWER DNR10US15	76 %	3.48 "	115 mm	22.5 mm	4.53 "	0.89 in	88.5 mm	120 V	1	10 W	AC or DC	62368-1	Adjustable Output Universal Input	90 VAC	264 VAC	Hazardous Locations Industrial ITE (Commercial)	CE	3000 V	670 mA	-20 °C	70 °C	375 V	15 V
XP POWER DNR10US24-S	76 %	3.48 "	115 mm	22.5 mm	4.53 "	0.89 in	88.5 mm	120 V	1	10 W	AC or DC	62368-1	Adjustable Output Universal Input	90 VAC	264 VAC	Hazardous Locations Industrial ITE (Commercial)	CE	3000 V	420 mA	-20 °C	70 °C	375 V	24 V
XP POWER DNR10US24	72 %	3.48 "	115 mm	22.5 mm	4.53 "	0.89 in	88.5 mm	120 V	1	10 W	AC or DC	62368-1	Adjustable Output Universal Input	90 VAC	264 VAC	Hazardous Locations Industrial ITE (Commercial)	CE	3000 V	420 mA	-20 °C	70 °C	375 V	24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	100	$ 24.64
