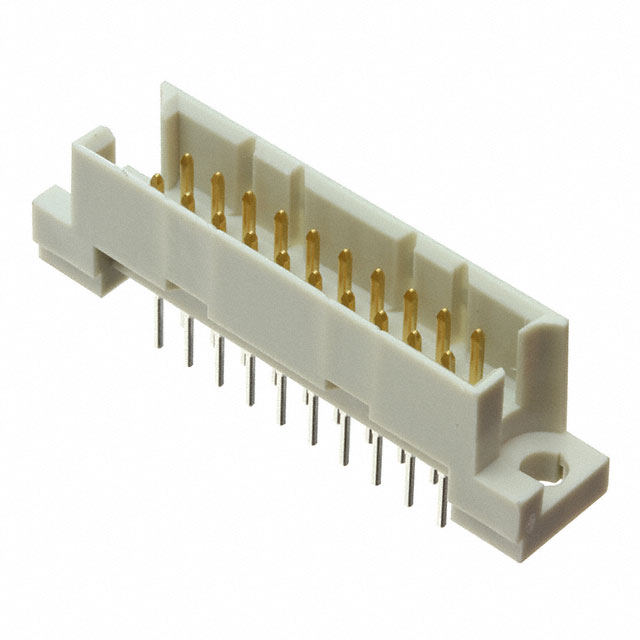

XC5E4421ABYOMR

Obsolete

Omron Electronics Inc-EMC Div

CONN DIN PLUG 44POS PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet How to Read Date Codes

XC5E4421ABYOMR

Obsolete

Omron Electronics Inc-EMC Div

CONN DIN PLUG 44POS PCB

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XC5E4421ABYOMR

Connector Type	Plug, Male Pins
Current Rating (Amps)	2 A
Material - Insulation	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	44
Number of Positions Loaded	44
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Style	Q
Termination	Solder

XC5E Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Connector Type	Material - Insulation	Style	Material Flammability Rating	Number of Rows	Pitch [x]	Pitch [x]	Current Rating (Amps)	Number of Positions	Termination	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions Loaded
Omron Electronics Inc-EMC Div XC5E-4481-2A	-55 °C	125 °C	44	Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	Q	UL94 V-0	2	2.54 mm	0.1 in	2 A	44
Omron Electronics Inc-EMC Div XC5E-3281-2A	-55 °C	125 °C	32	Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	Q	UL94 V-0	2	2.54 mm	0.1 in	2 A
Omron Electronics Inc-EMC Div XC5E-3241	-55 °C	125 °C	32	Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	Q	UL94 V-0	2	2.54 mm	0.1 in	2 A
Omron Electronics Inc-EMC Div XC5E4421ABYOMR	-55 °C	125 °C	44	Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	Q	UL94 V-0	2	2.54 mm	0.1 in	2 A	44	Solder	Through Hole
Omron Electronics Inc-EMC Div XC5E-2081-2A	-55 °C	125 °C	20	Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	Q	UL94 V-0	2	2.54 mm	0.1 in	2 A	20
Omron Electronics Inc-EMC Div XC5E-2081-2	-55 °C	125 °C	20	Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	Q	UL94 V-0	2	2.54 mm	0.1 in	2 A	20	Solder	Through Hole	16 µin	0.41 µm	Gold
Omron Electronics Inc-EMC Div XC5E-3081-2	-55 °C	125 °C	30	Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	Q	UL94 V-0	2	2.54 mm	0.1 in	2 A	30	Solder	Through Hole	16 µin	0.41 µm	Gold
Omron Electronics Inc-EMC Div XC5E-4481-2	-55 °C	125 °C	44	Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	Q	UL94 V-0	2	2.54 mm	0.1 in	2 A	44
Omron Electronics Inc-EMC Div XC5E-3223	-55 °C	125 °C		Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	Q	UL94 V-0	2	2.54 mm	0.1 in	2 A		Wire Wrap	Through Hole	16 µin	0.41 µm	Gold	All
Omron Electronics Inc-EMC Div XC5E-4423	-55 °C	125 °C		Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	Q	UL94 V-0	2	2.54 mm	0.1 in	2 A	44	Wire Wrap	Through Hole	16 µin	0.41 µm	Gold	All
