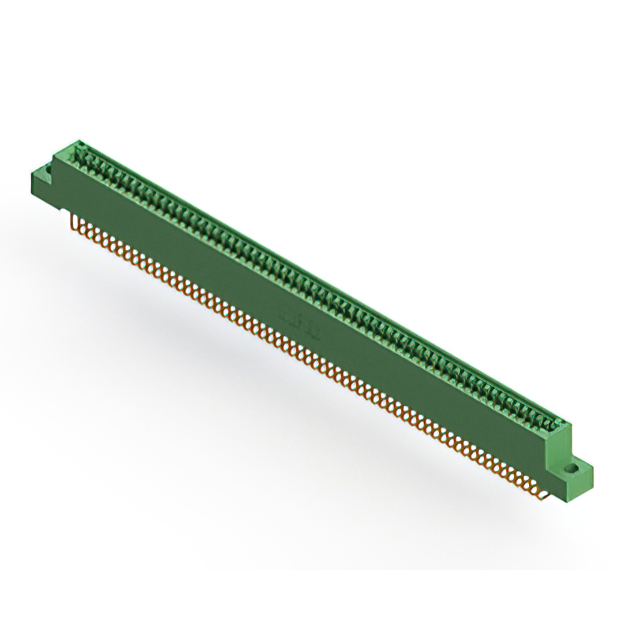

345-063-558-104
ActiveEDAC Inc.
CONN EDGE SINGLE FML 63POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
345-063-558-104
ActiveEDAC Inc.
CONN EDGE SINGLE FML 63POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-063-558-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 63 |
| Number of Positions/Bay/Row [custom] | 63 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
345-063 Series
...
| Part | Card Type | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature | Gender | Read Out | Number of Positions | Number of Rows | Contact Material | Material - Insulation | Termination Rows | Termination | Number of Positions/Bay/Row [custom] | Contact Type | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Non Specified - Single Edge | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | Female | Single | 63 | 1 | Copper Alloy | Polyester Thermoplastic | 1 | Wire Wrap | 63 | Cantilever | Gold | -40 °C | 105 ░C | Through Hole | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||||
EDAC Inc. | Non Specified - Single Edge | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female | Single | 63 | 1 | Copper Alloy | Polyester Thermoplastic | 1 | Solder | 63 | Cantilever | Gold | -40 °C | 105 ░C | Through Hole | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||||
EDAC Inc. | Non Specified - Single Edge | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female | Single | 63 | 1 | Copper Alloy | Polyester Thermoplastic | 1 | Wire Wrap | 63 | Cantilever | Gold | -40 °C | 105 ░C | Through Hole Right Angle | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 in | |||
EDAC Inc. | Non Specified - Single Edge | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female | Single | 63 | 1 | Copper Alloy | Polyester Thermoplastic | 1 | Wire Wrap | 63 | Cantilever | Gold | -40 °C | 105 ░C | Through Hole | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Threaded Insert Top Mount Opening | Card Guides | ||||
EDAC Inc. | Non Specified - Single Edge | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female | Single | 63 | 1 | Copper Alloy | Polyester Thermoplastic | 1 | Wire Wrap | 63 | Cantilever | Gold | -40 °C | 105 ░C | Through Hole | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Threaded Insert Top Mount Opening | Card Guides | ||||
EDAC Inc. | Non Specified - Single Edge | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | Female | Single | 63 | 1 | Copper Alloy | Polyester Thermoplastic | 1 | Wire Wrap | 63 | Cantilever | Gold | -40 °C | 105 ░C | Through Hole | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||||
EDAC Inc. | Non Specified - Single Edge | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female | Single | 63 | 1 | Copper Alloy | Polyester Thermoplastic | 1 | Solder | 63 | Cantilever | Gold | -40 °C | 105 ░C | Through Hole | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | M3 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | Non Specified - Single Edge | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | Female | Single | 63 | 1 | Copper Alloy | Polyester Thermoplastic | 1 | Solder | 63 | Cantilever | Gold | -40 °C | 105 ░C | Through Hole Right Angle | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Side Mount Opening Unthreaded | |||
EDAC Inc. | Non Specified - Single Edge | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female | Single | 63 | 1 | Copper Alloy | Polyester Thermoplastic | 1 | Wire Wrap | 63 | Cantilever | Gold | -40 °C | 105 ░C | Through Hole | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Floating Bobbin Top Mount Opening | 2.95 mm | 0.116 in | |||
EDAC Inc. | Non Specified - Single Edge | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | Female | Single | 63 | 1 | Copper Alloy | Polyester Thermoplastic | 1 | Wire Wrap | 63 | Cantilever | Gold | -40 °C | 105 ░C | Through Hole Right Angle | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 22.96 | |
Description
General part information
345-063 Series
63 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
