TWR-M

Active

Panduit Corp

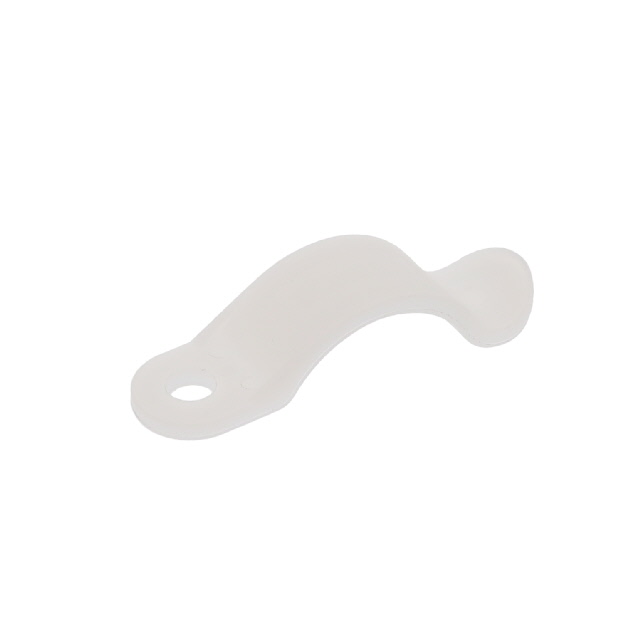

CABLE CLAMP, NYLON 6.6 , 9.5MM, NATURAL

Search across all available documentation for this part.

Active

Panduit Corp

CABLE CLAMP, NYLON 6.6 , 9.5MM, NATURAL

Technical Specifications

Parameters and characteristics for this part

Specification	TWR-M

Bundle Center to Mounting Center	0.56 "
Bundle Center to Mounting Center	14.22 mm
Color	Natural
Length	1.4 "
Length	35.56 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Material Thickness	0.06 in
Material Thickness	1.52 mm
Mounting Type	Fastener
Panel Hole Size	3.81 mm
Panel Hole Size	0.15 in
Screw Size	M3
Screw Size	#6
Type	Clip, Spring
Width [y]	0.38 in
Width [y]	9.65 mm

Part	Color	Legend	Cable Diameter [diameter]	Cable Diameter [diameter]	Size [y]	Size [x]	Material	Type	License - User Details	For Use With/Related Products	Accessory Type	Features	Legend	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Material Flammability Rating	Screw Size	Screw Size	Material Thickness	Material Thickness	Length	Length	Width [y]	Width [y]	Panel Hole Size	Panel Hole Size	Mounting Type
Panduit Corp PM-4	White	4	3.2 mm	0.126 in	0.18 in 4.6 mm	0.5 in	Tedlar	Wire Marker Miniature
Panduit Corp PROG-EMCD-SL5								Labeling Software	5 User	Easy-Mark™
Panduit Corp P122										Chains S-Hooks Straps Wire	Z-Purlin Clip	Clip-On Installation
Panduit Corp FZBLP	Black										Bracket - Mounting
Panduit Corp SG1-5
Panduit Corp PM-0	White		3.2 mm	0.126 in	0.18 in 4.6 mm	0.5 in	Tedlar	Wire Marker Miniature					0
Panduit Corp TD6810										Panduit Duct Type T105/T130/T170
Panduit Corp TWR-C	Natural						Polyamide (PA66) Nylon 6/6	Clip Spring						0.56 "	14.22 mm	UL94 V-2	M3	#6	0.06 in	1.52 mm	1.4 "	35.56 mm	0.38 in	9.65 mm	3.81 mm	0.15 in	Fastener
Panduit Corp TWR-M	Natural						Polyamide (PA66) Nylon 6/6	Clip Spring						0.56 "	14.22 mm	UL94 V-2	M3	#6	0.06 in	1.52 mm	1.4 "	35.56 mm	0.38 in	9.65 mm	3.81 mm	0.15 in	Fastener
Panduit Corp DS5	Gray									For All PVC Wiring Duct Types	Duct Sealing Compound

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Spring Natural Fastener 0.375" (9.53mm)
