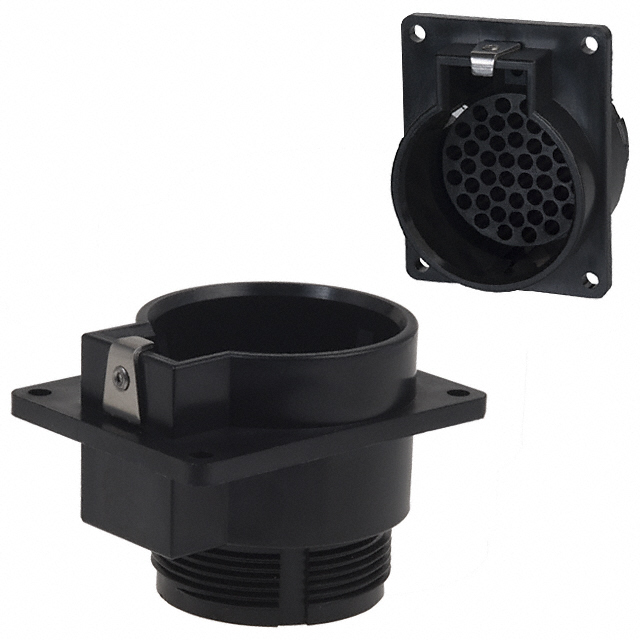

MBG46R-11

Active

Souriau-Sunbank by Eaton

CONN RCPT HSG FMALE 46POS PNL MT

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN RCPT HSG FMALE 46POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	MBG46R-11

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Latch Lock
Housing Color	Black
Insert Material	Thermoplastic, Halogen Free
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	46
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material	Thermoplastic Polyester
Shell Size - Insert	46
Shielding	Unshielded
Type	For Female Sockets

Part	Shell Material	Type	Material Flammability Rating	Mounting Feature	Fastening Type	Housing Color	Contact Shape	Shell Size - Insert	Contact Type	Insert Material	Note	Contact Size	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Shielding	Number of Positions
Souriau-Sunbank by Eaton MBG46R-11	Thermoplastic Polyester	For Female Sockets	UL94 V-0	Flange	Latch Lock	Black	Circular	46	Crimp	Thermoplastic Halogen Free	Contacts Not Included	16	-55 °C	125 °C	Receptacle Housing	Unshielded	46

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 12.72

General part information

46 Position Circular Connector Receptacle Housing Panel Mount
