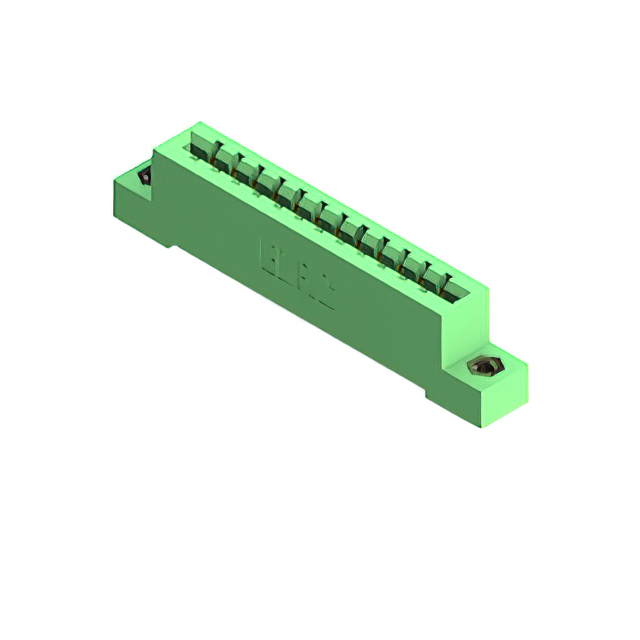

837-012-544-108
ActiveEDAC Inc.
CONN EDGE SGL FMALE 12POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
837-012-544-108
ActiveEDAC Inc.
CONN EDGE SGL FMALE 12POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 837-012-544-108 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 12 |
| Number of Positions/Bay/Row [custom] | 12 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
837-012 Series
...
| Part | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Color | Card Type | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Termination Rows | Pitch [x] | Pitch [x] | Flange Feature | Gender | Material - Insulation | Number of Positions/Bay/Row [custom] | Contact Finish | Read Out | Number of Rows | Number of Positions | Flange Feature [diameter] | Flange Feature [diameter] | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | Non Specified - Single Edge | 10 Áin | 0.25 Ám | Cantilever | 125 °C | -40 °C | Wire Wrap | 1 | 0.156 in | 3.96 mm | M3 Threaded Insert Top Mount Opening | Female | Diallyl Phthalate (DAP) | 12 | Gold | Single | 1 | 12 | |||||
EDAC Inc. | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | Non Specified - Single Edge | 10 Áin | 0.25 Ám | Cantilever | 125 °C | -40 °C | Wire Wrap | 1 | 0.156 in | 3.96 mm | Floating Bobbin Top Mount Opening | Female | Diallyl Phthalate (DAP) | 12 | Gold | Single | 1 | 12 | 2.95 mm | 0.116 in | |||
EDAC Inc. | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Cantilever | 125 °C | -40 °C | Solder | 2 | 0.156 in | 3.96 mm | Floating Bobbin Flush Mount | Female | Diallyl Phthalate (DAP) | 6 | Gold | Dual | 2 | 12 | 2.95 mm | 0.116 in | Card Extender | ||
EDAC Inc. | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | Non Specified - Single Edge | 10 Áin | 0.25 Ám | Cantilever | 125 °C | -40 °C | Solder | 1 | 0.156 in | 3.96 mm | Floating Bobbin Flush Mount | Female | Diallyl Phthalate (DAP) | 12 | Gold | Single | 1 | 12 | 2.95 mm | 0.116 in | |||
EDAC Inc. | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Cantilever | 125 °C | -40 °C | Solder | 2 | 0.156 in | 3.96 mm | Flush Mount M3 Threaded Insert Top Opening | Female | Diallyl Phthalate (DAP) | 6 | Gold | Dual | 2 | 12 | |||||
EDAC Inc. | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Cantilever | 125 °C | -40 °C | Solder Eyelet(s) | 2 | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | Female | Diallyl Phthalate (DAP) | 6 | Gold | Dual | 2 | 12 | |||||
EDAC Inc. | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Cantilever | 125 °C | -40 °C | Solder | 2 | 0.156 in | 3.96 mm | Female | Diallyl Phthalate (DAP) | 6 | Gold | Dual | 2 | 12 | Card Extender | 3.25 mm | 0.128 in | |||
EDAC Inc. | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Cantilever | 125 °C | -40 °C | Solder | 2 | 0.156 in | 3.96 mm | Floating Bobbin Flush Mount | Female | Diallyl Phthalate (DAP) | 6 | Gold | Dual | 2 | 12 | 2.95 mm | 0.116 in | Card Extender | ||
EDAC Inc. | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | Non Specified - Single Edge | 10 Áin | 0.25 Ám | Cantilever | 125 °C | -40 °C | Wire Wrap | 1 | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | Female | Diallyl Phthalate (DAP) | 12 | Gold | Single | 1 | 12 | |||||
EDAC Inc. | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Green | Non Specified - Single Edge | 10 Áin | 0.25 Ám | Cantilever | 125 °C | -40 °C | Solder | 1 | 0.156 in | 3.96 mm | Floating Bobbin Flush Mount | Female | Diallyl Phthalate (DAP) | 12 | Gold | Single | 1 | 12 | 2.95 mm | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
837-012 Series
12 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
