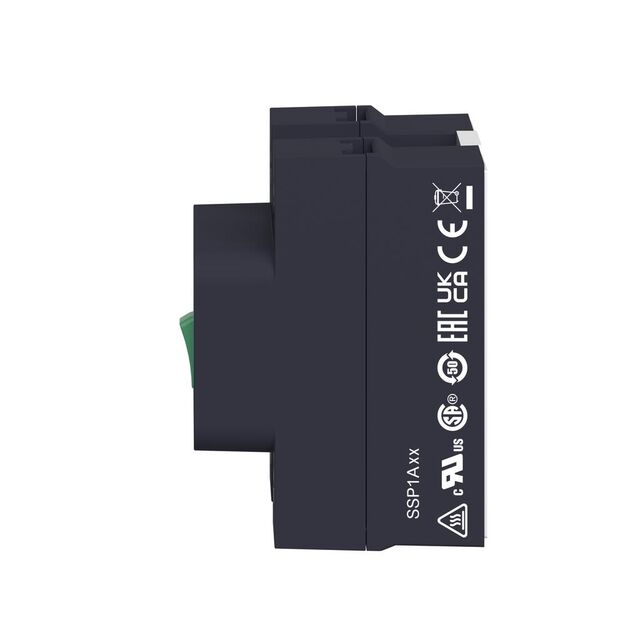

SSP1A490BDS

Active

SQUARE D BY SCHNEIDER ELECTRIC

SSR RELAY SPST-NO 90A 48-660V

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

SSR RELAY SPST-NO 90A 48-660V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Mounting Type	Voltage - Input [Max]	Voltage - Input [Min]	Supplier Device Package	Termination Style	Package / Case	Voltage - Load [Min]	Voltage - Load [Max]	Load Current
SQUARE D BY SCHNEIDER ELECTRIC SSP1A175BD	-40 °C	80 C	AC Zero Cross	Chassis Mount	32 V	3 V	Hockey Puck	Screw Terminal	Hockey Puck	24 V	300 V	75 A
SQUARE D BY SCHNEIDER ELECTRIC SSP1A475BDS	-40 °C	80 C	AC Zero Cross	Chassis Mount	32 V	4 V		Screw Terminal	Hockey Puck	48 V	660 V	75 A
SQUARE D BY SCHNEIDER ELECTRIC SSP1A125BD	-40 °C	80 C	AC Zero Cross	Chassis Mount	32 V	3 V		Screw Terminal	Module	24 V	300 V	25 A
SQUARE D BY SCHNEIDER ELECTRIC SSP1A125M7T	-40 °C	80 C	AC Zero Cross	Chassis Mount	280 VAC/DC	90 VAC	Hockey Puck	Screw Terminal	Hockey Puck	24 V	300 V	25 A
SQUARE D BY SCHNEIDER ELECTRIC SSP1A125BDS	-40 °C	80 C	AC Zero Cross	Chassis Mount	32 V	4 V		Screw Terminal	Hockey Puck	24 V	300 V	25 A
SQUARE D BY SCHNEIDER ELECTRIC SSP1A125BDT	-40 °C	80 C	AC Zero Cross	Chassis Mount	32 V	3 V		Screw Terminal	Module	24 V	300 V	25 A
SQUARE D BY SCHNEIDER ELECTRIC SSP1A4125BDS	-40 °C	80 C	AC Zero Cross	Chassis Mount	32 V	4 V	Hockey Puck	Screw Terminal	Hockey Puck	48 V	660 V	125 A
SQUARE D BY SCHNEIDER ELECTRIC SSP1A4125BD	-40 °C	80 C	AC Zero Cross	Chassis Mount	32 V	4 V		Screw Terminal	Module	48 V	600 V	125 A
SQUARE D BY SCHNEIDER ELECTRIC SSP1A175BDT	-40 °C	80 C	AC	Chassis Mount	32 V	3 V		Screw Terminal	Module	24 V	300 V	75 A
SQUARE D BY SCHNEIDER ELECTRIC SSP1A490BDS	-40 °C	80 C	AC Zero Cross	Chassis Mount	32 VAC	4 VAC		Screw Terminal	Hockey Puck	48 V	660 V	90 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A) Hockey Puck
