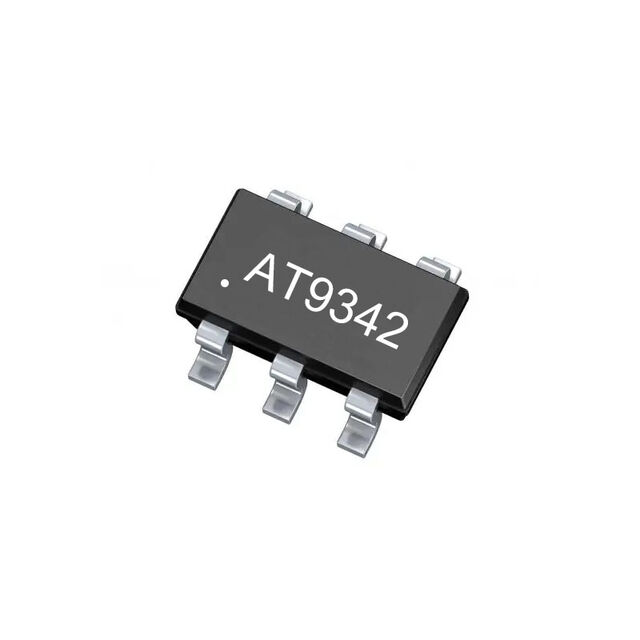

AT9342
ActiveAnalog Technologies, Inc.
40V 600MA STEP-DOWN REGULATOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AT9342
ActiveAnalog Technologies, Inc.
40V 600MA STEP-DOWN REGULATOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AT9342 |
|---|---|
| Current - Output | 1 A |
| Frequency - Switching | 1.8 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature | 150 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6L |
| Synchronous Rectifier | False |
| Topology | Buck |
| Voltage - Input (Min) [Min] | 4.2 V |
| Voltage - Output (Max) [Max] | 40 V |
| Voltage - Output (Min/Fixed) | 0.794 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.63 | |
| 10 | $ 1.46 | |||
| 25 | $ 1.39 | |||
| 100 | $ 1.14 | |||
| 250 | $ 1.06 | |||
| 500 | $ 0.94 | |||
| 1000 | $ 0.74 | |||
| 2500 | $ 0.69 | |||
| 5000 | $ 0.66 | |||
Description
General part information
AT9342 Series
Buck Switching Regulator IC Positive Adjustable 0.794V 1 Output 1A SOT-23-6
