CP24B-A2E01G

Active

MEAN WELL USA Inc.

22MM/GN/MAINTAINED/1NC

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

22MM/GN/MAINTAINED/1NC

Technical Specifications

Parameters and characteristics for this part

Specification	CP24B-A2E01G

Actuator Type	Round, Button
Circuit	SPST-NC
Color - Actuator/Cap	Green
Current Rating (Amps)	8 A, 2.5 A
Electrical Life	100000 Cycles
Ingress Protection	IP66
Mechanical Life	250000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	On-Off
Termination Style	Spring Terminal
Type	Standard
Voltage Rating - AC	120 V
Voltage Rating - DC	30 V

Part	Current Rating (Amps)	Mounting Type	Termination Style	Mechanical Life	Voltage Rating - DC	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Type	Ingress Protection	Electrical Life	Color - Actuator/Cap	Switch Function	Actuator Type
MEAN WELL USA Inc. CP24B-A2E01G	2.5 A 8 A	Panel Mount Front	Spring Terminal	250000 Cycles	30 V	120 V	22.3 mm	SPST-NC	70 °C	-25 °C	Standard	IP66	100000 Cycles	Green	On-Off	Button Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 13.13

General part information

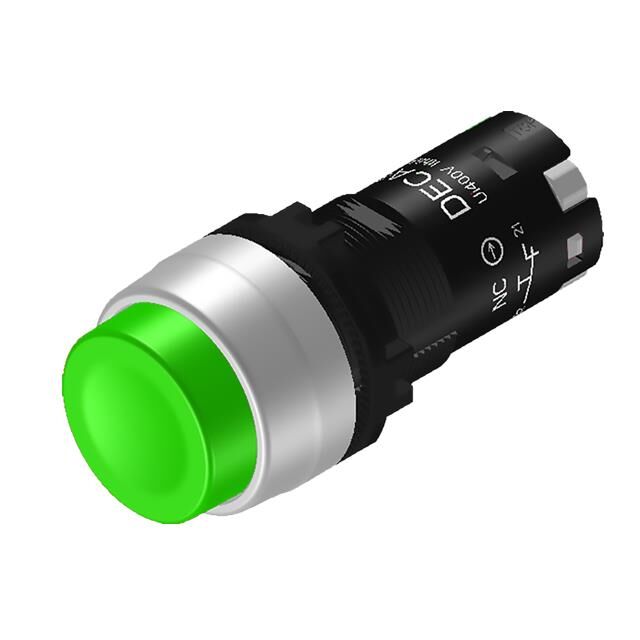

Pushbutton Switch SPST-NC Standard Panel Mount, Front
