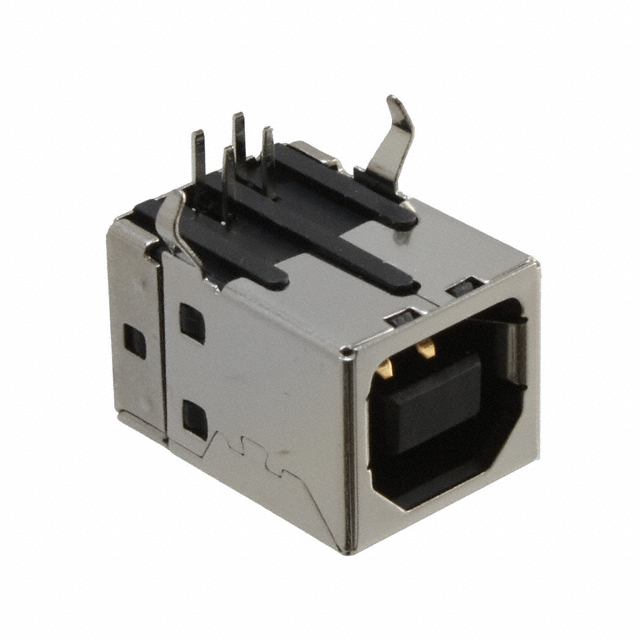

USB-B1HSB6
ActiveOn Shore Technology Inc.
CONN RCPT TYPEB 4POS R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
USB-B1HSB6
ActiveOn Shore Technology Inc.
CONN RCPT TYPEB 4POS R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | USB-B1HSB6 |
|---|---|
| Connector Type | USB-B |
| Contact Finish | Gold |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Right Angle |
| Number of Contacts [custom] | 4 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | 0 °C |
| Shell/Shielding Material | Brass |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage - Rated | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.80 | |
| 10 | $ 0.61 | |||
| 25 | $ 0.55 | |||
| 40 | $ 0.52 | |||
| 80 | $ 0.48 | |||
| 230 | $ 0.43 | |||
| 440 | $ 0.40 | |||
| 945 | $ 0.37 | |||
| 2400 | $ 0.33 | |||
Description
General part information
USB-B1H Series
USB-B (USB TYPE-B) Receptacle Connector 4 Position Through Hole, Right Angle
