BU280Z-178-HT

Active

On Shore Technology Inc.

CONN IC DIP SOCKET 28POS GOLD

Search across all available documentation for this part.

Active

On Shore Technology Inc.

CONN IC DIP SOCKET 28POS GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	BU280Z-178-HT

Contact Finish - Mating	Gold
Contact Finish - Post	Copper
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Finish Thickness - Post	Flash
Contact Material - Mating	Beryllium Copper
Contact Material - Post [custom]	Brass
Contact Resistance	7 mOhm
Current Rating (Amps)	1 A
Features	Open Frame
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions or Pins (Grid)	28
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length [x]	1.5 mm
Termination Post Length [x]	0.059 in
Type	DIP
Type	0.6 in
Type	15.24 mm

Part	Termination Post Length [x]	Termination Post Length [x]	Number of Positions or Pins (Grid)	Contact Material - Mating	Contact Material - Post [custom]	Features	Contact Finish Thickness - Post	Housing Material	Contact Finish - Mating	Material Flammability Rating	Pitch - Post	Pitch - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Contact Finish - Post	Termination	Contact Resistance	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Type	Type	Type
On Shore Technology Inc. BU280Z-178-HT	1.5 mm	0.059 in	28	Beryllium Copper	Brass	Open Frame	Flash	Polybutylene Terephthalate (PBT) Glass Filled	Gold	UL94 V-0	2.54 mm	0.1 in	-55 °C	125 °C	78.7 µin	2 µm	Surface Mount	Copper	Solder	7 mOhm	0.1 in	2.54 mm	1 A	DIP	0.6 in	15.24 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	56	$ 2.89

General part information

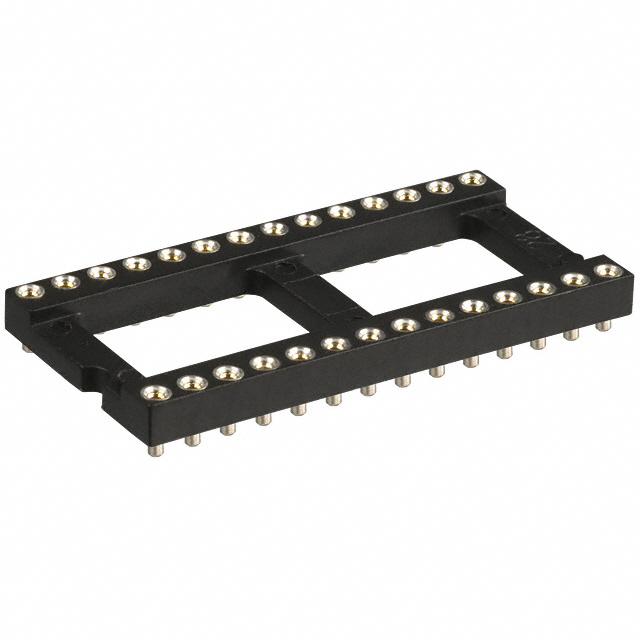

28 (2 x 14) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Gold Surface Mount
