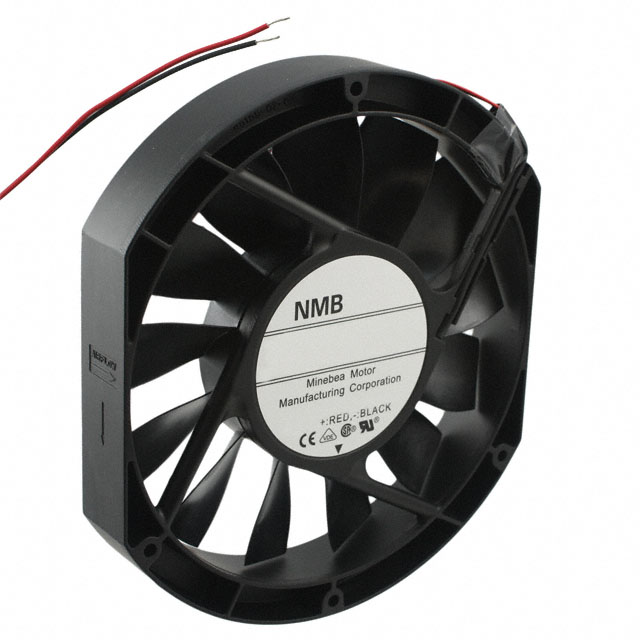

5910PL-05W-B50-L00

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 172X25.4MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans & Blowers Catalog Fan Agency Approvals +1

5910PL-05W-B50-L00

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 172X25.4MM 24VDC WIRE

Deep-Dive with AI

DocumentsFans & Blowers Catalog Fan Agency Approvals +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5910PL-05W-B50-L00

Air Flow	7 mł/min
Air Flow	250 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Fan Type	Tubeaxial
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	62.5 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	24 W
RPM	3500 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	172 mm
Size / Dimension [z]	150 mm
Static Pressure	0.657 in H2O
Static Pressure	163.7 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	30 V
Voltage Range [Min]	12 VDC
Weight	500 g
Weight	1.1 lbs
Width [y]	25.4 mm

5910PL Series

Part	Weight	Weight	Static Pressure	Static Pressure	Features	Material - Blade	Material - Frame	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Width [y]	RPM	Current Rating (Amps)	Voltage - Rated	Termination	Power (Watts)	Voltage Range [Max]	Voltage Range [Min]	Fan Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Noise	Air Flow	Air Flow	Bearing Type	Approval Agency	Voltage - Rated [custom]
NMB TECHNOLOGIES 5910PL-04W-B59-L50	500 g	1.1 lbs	144.5 Pa	0.58 in H2O	Speed Sensor (Tach)	Plastic	Aluminum	Rectangular/Rounded	150 mm	172 mm	25.4 mm	3500 RPM	1.85 A	12 VDC	3 Wire Leads	22.2 W	18 VDC	6 VDC	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	61.5 dB(A)	6.33 m³/min	225.9 CFM	Ball	CE CSA UL VDE
NMB TECHNOLOGIES 5910PL-07W-B50-L00	500 g	1.1 lbs	163.7 Pa	0.657 in H2O		Plastic	Aluminum	Rectangular/Rounded	150 mm	172 mm	25.4 mm	3500 RPM	0.51 A		2 Wire Leads	24.5 W	60 V	25 VDC	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	62.5 dB	7 mł/min	250 CFM	Ball	CE CSA UL VDE	48 VDC
NMB TECHNOLOGIES 5910PL-05W-B60-L00	500 g	1.1 lbs	187 Pa	0.751 in H2O		Plastic	Aluminum	Rectangular/Rounded	150 mm	172 mm	25.4 mm	3750 RPM	1.16 A	24 VDC	2 Wire Leads	27.8 W	30 V	12 VDC	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	62.9 dB	7.56 mł/min	270 CFM	Ball	CE CSA UL VDE
NMB TECHNOLOGIES 5910PL-05W-B20-L00	500 g	1.1 lbs	92.2 Pa	0.37 in H2O		Plastic	Aluminum	Rectangular/Rounded	150 mm	172 mm	25.4 mm	2850 RPM	580 mA	24 VDC	2 Wire Leads	13.9 W	30 V	12 VDC	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	57 dB	5.32 m³/min	190 CFM	Ball	CE CSA UL VDE
NMB TECHNOLOGIES 5910PL-07W-B19-L50	500 g	1.1 lbs	75.9 Pa	0.305 in H2O	Speed Sensor (Tach)	Plastic	Aluminum	Rectangular/Rounded	150 mm	172 mm	25.4 mm	2500 RPM	0.22 A		3 Wire Leads	10.6 W	60 V	25 VDC	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	54.1 dB	4.76 m³/min	170 CFM	Ball	CE CSA UL VDE	48 VDC
NMB TECHNOLOGIES 5910PL-05W-B40-L00	500 g	1.1 lbs	141 Pa	0.566 in H2O		Plastic	Aluminum	Rectangular/Rounded	150 mm	172 mm	25.4 mm	3350 RPM	0.86 A	24 VDC	2 Wire Leads		30 V	12 VDC	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	61.5 dB(A)	6.44 m³/min	230 CFM	Ball	CE CSA UL VDE
NMB TECHNOLOGIES 5910PL-07W-B30-L00	500 g	1.1 lbs	115.2 Pa	0.462 in H2O		Plastic	Aluminum	Rectangular/Rounded	150 mm	172 mm	25.4 mm	3150 RPM	370 mA		2 Wire Leads	17.8 W	60 V	25 VDC	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	58.9 dB	5.88 m³/min	210 CFM	Ball	CE CSA UL VDE	48 VDC
NMB TECHNOLOGIES 5910PL-04W-B30-L00	500 g	1.1 lbs	115.2 Pa	0.462 in H2O		Plastic	Aluminum	Rectangular/Rounded	150 mm	172 mm	25.4 mm	3150 RPM	1.52 A	12 VDC	2 Wire Leads	18.2 W	18 VDC	6 VDC	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	58.9 dB	5.88 m³/min	210 CFM	Ball	CE CSA UL VDE
NMB TECHNOLOGIES 5910PL-05W-B59-L50	500 g	1.1 lbs	163.7 Pa	0.657 in H2O	Speed Sensor (Tach)	Plastic	Aluminum	Rectangular/Rounded	150 mm	172 mm	25.4 mm	3500 RPM		24 VDC	3 Wire Leads	24 W	30 V	12 VDC	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	62.5 dB	7 mł/min	250 CFM	Ball	CE CSA UL VDE
NMB TECHNOLOGIES 5910PL-05W-B50-L00	500 g	1.1 lbs	163.7 Pa	0.657 in H2O		Plastic	Aluminum	Rectangular/Rounded	150 mm	172 mm	25.4 mm	3500 RPM		24 VDC	2 Wire Leads	24 W	30 V	12 VDC	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	62.5 dB	7 mł/min	250 CFM	Ball	CE CSA UL VDE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	30	$ 60.62

Description

General part information

5910PL Series

Fan Tubeaxial 24VDC Rectangular/Rounded - 172mm L x 150mm H Ball 250.0 CFM (7.00m³/min) 2 Wire Leads
